Model: YA-PS01-1
Overall Size: 205*84*50-90cm
Safe Working Load: 295kg
Functions: Back section adjustable,Knee section adjustable, High-low, Trendelenburg ,Reverse trendelenburg
Watch Video

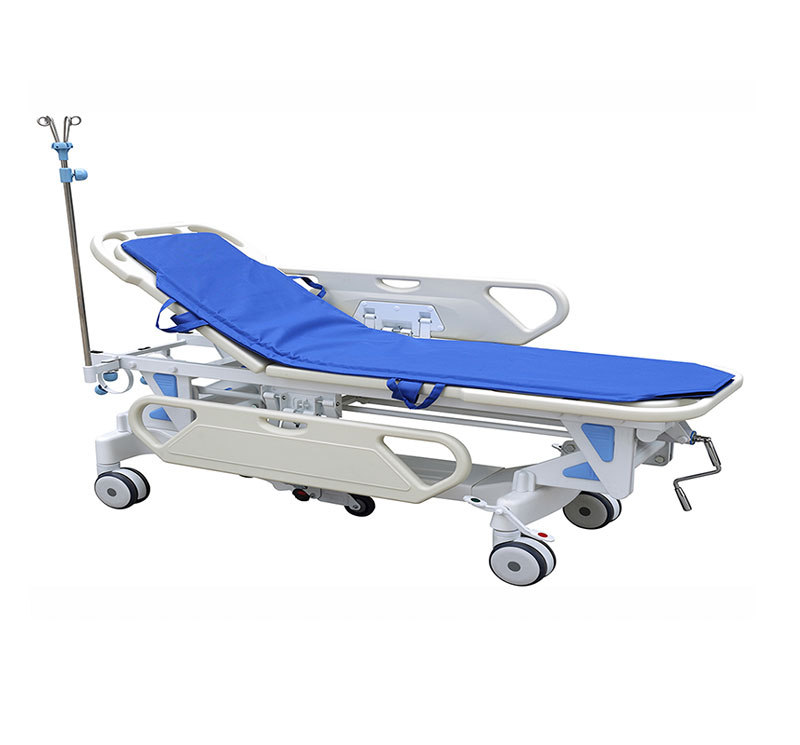

This patient transfer stretcher is used in the emergency room, ICU, operating room, anesthesiology department and transhipment view.
Technical Specifications:
| Specification | |
| Model | YA-TH5CSH |
| Size | 205*84*50-90cm |
| Weight(without surface/accessories) | 128kg |
| Safe Weight Load | 295kg |
| Protection class | IPX4 |
| Deck Dimension | 190*70cm |
| Siderails Size | 137*44cm |
| Castors: | Four 200mm castors with central locking system |
| Bumper castors | Bumper castors on 4 corners of stretcher |
| Functions: | |
| High-Low: | 50-90cm |
| Back section adjustable | 0° to 85° |
| Knee section adjustable | 0° to 35° |
| Trendelenburg | 0° to 16° |
| Reverse trendelenburg | 0° to 16° |
| Standard Accessories: | |
| Telescopic IV stand 1 piece | |
| Pushing handle on both ends | |
| Mattress 1 piece | |
| Sidesails | |
| Head/ Footboard | |
| Optional Accessories | |
| Drawer for storage | |
| Apparatus shelf | |
