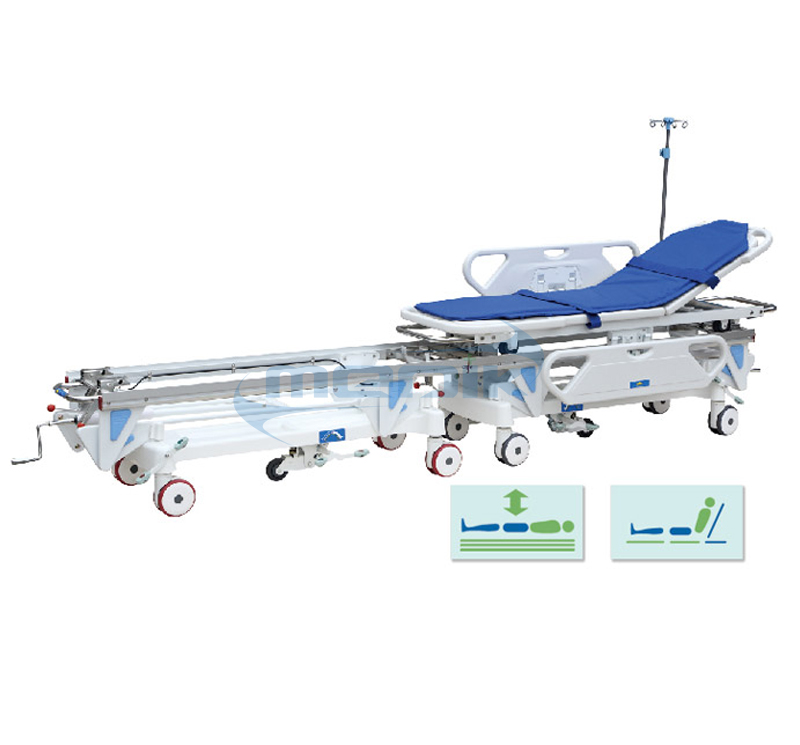

YA-J2A Operation Room Connecting Trolley

share

Model: YA-J2A

Overall Size: 365*64*64-97cm

Safe Working Load: 135kg

Functions: Back section adjustable, High-low


Product Details

Key features:

Used to connect the patient from outside OR room to inside the OR room

Trolley platform can be slide for transfer patient from trolley to bed

Electrostatic spray and aluminum alloy frame

Aluminum guardrail and surface

6 inch central controlled caster


Technical parameters:

Specification:
ModelYA-J2A
Size365*64*64-97cm
Loading Capacity180kg
Safe Weight Load135kg
Functions:
High-Low:64-97cm by crank
Back section adjustable0° to 75° by gas spring
Standard Accessories:
Side rails: 2pcs, ABS, detachable
2 trolleys join together, lift&down separately
Back section is controlled by gas spring
Railway for connecting 2 stretchers is also made of aluminum alloy, durable
Castors:125mm castors with central locking system
With 5th retractable wheel in the middle for direction
1 crank,1 I.V. pole and 1 mattress for each trolley
