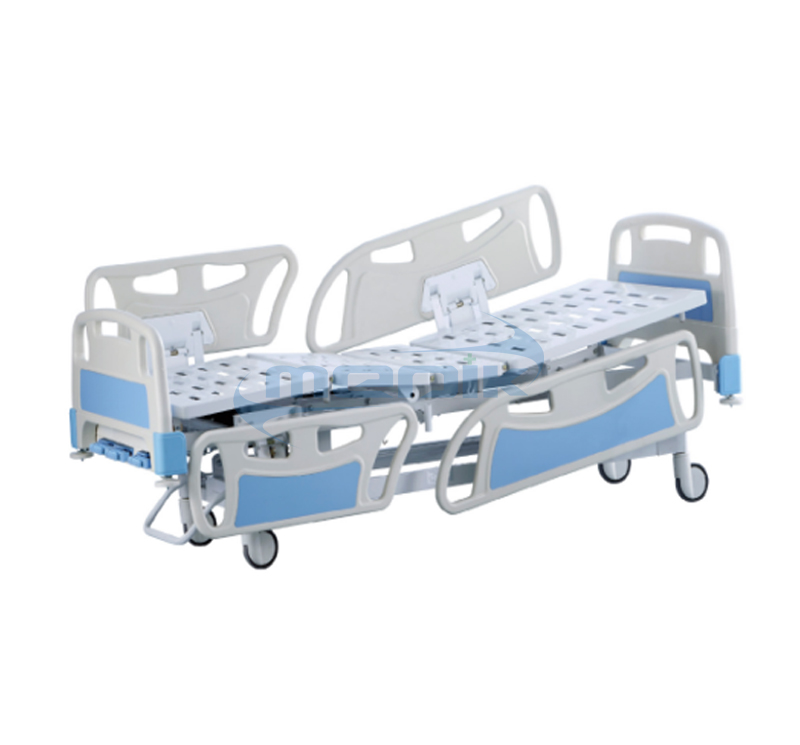

Model: YA-M3PCM01
Overall Size: 2160*1100*520-770mm
Safe Working Load: 205kg
Functions: Back section adjustable, Knee section adjustable,High-Low
Features:
1. 3 movements manual operation
2. Four split side rail,drop down under the bed platform
3. Foldable hand crank
4. Detachable head/foot board with easy lock
5. Central brake system with wheel diameter of 125mm
6. Bumper caster located on four corners
7. With angle indicator embeded in the railing for back and trendenleburg adjustment(optional)
8. Retractable 5th wheel for direction(optional)
Technical features:
| Technical parameters | |
| Model | YA-M5PCM01 |
| Overall Size | 2160*1100*520-770mm |
| Lying surface | 2000*900mm |
| High-Low | 520-770mm |
| Back section adjustable | 0° to 75° |
| Knee section adjustable | 0° to 40° |
| Safe working load | 205kg |
| Specification | |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation hole, molded |
| Handrails | Four split side rail,drop down under the bed platform |
| Head and Foot board | Detachable head/foot board with easy lock |
| Cranks | 3 peaces foldable hand cranks |
| Castors | Central brake system with wheel diameter of 125mm |
| Bumper castors | Bumper castors on 4 corners of bed |
| Angle indicator | With angle indicator embeded in the railing for back |
| Standard Accessories | |
| Head/Foot Board | 2 pieces |
| Side Rails | 4 pieces |
| Bed Frame | 1 set |
| Bed Boards | 4 pieces |
| Casters | 4 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
