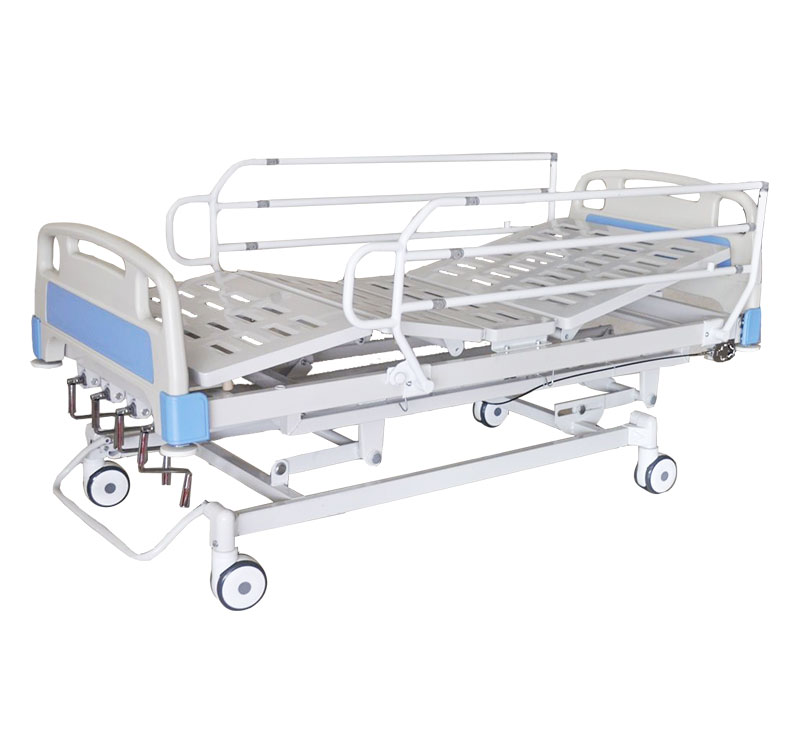

YA-M5-4 Manual 4 Cranks Hospital Bed

Share:

Model: YA-M5-4

Overall Size: 2160*1100*520-750mm

Safe Working Load: 225kg

Functions: Backrest, Footrest adjustable, High-Low, Trendelenburg, Reverse-Trend

Color options:  Green, Blue, Wood

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Specification

- Bed Frame electrophoresis and powder coating

- Bed platform MS perforated platform with ventilation hole, molded

- Handrails metal collapsible side rail

- Head and Footboard Detachable head/footboard with easy lock

- Cranks 4 pieces foldable chrome crank

- Castors central brake system with a wheel diameter of 125mm

- Bumper castors on 4 corners of the bed

- Manual CPR manual CPR on both sides


Technical parameters

ModelYA-M5-4
Overall  Size(L*W*H)2160*1100*520mm (85″ x 43″ x 20.5″)
Lying surface2000*900mm (78.7″ 35.5″ )
High-Low520-750mm (20.5″ – 29.5″ )
Back section adjustable0° to 75°
Knee section adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Safe working load225kg(495 Ibs)

 Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 2 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
