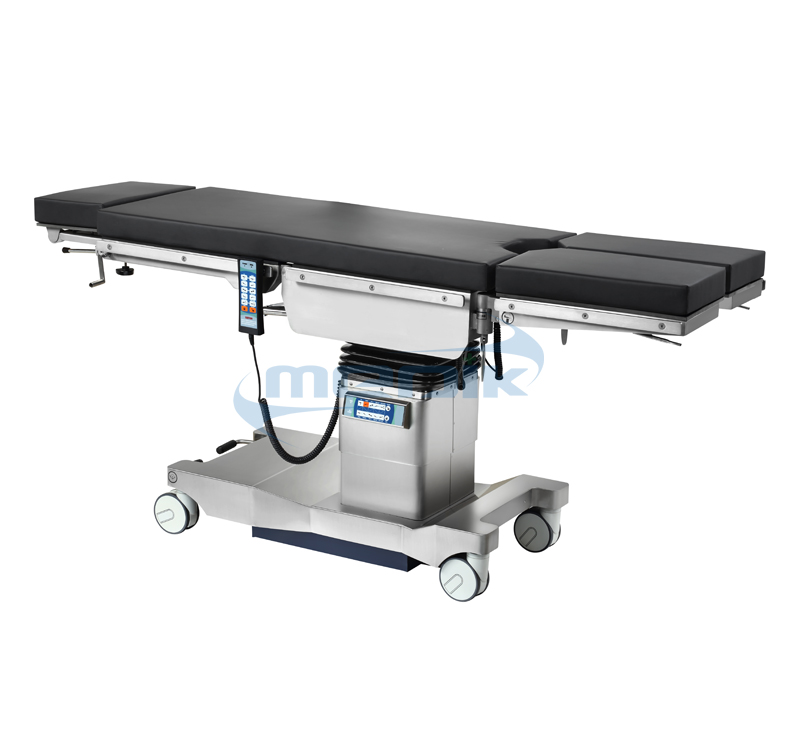

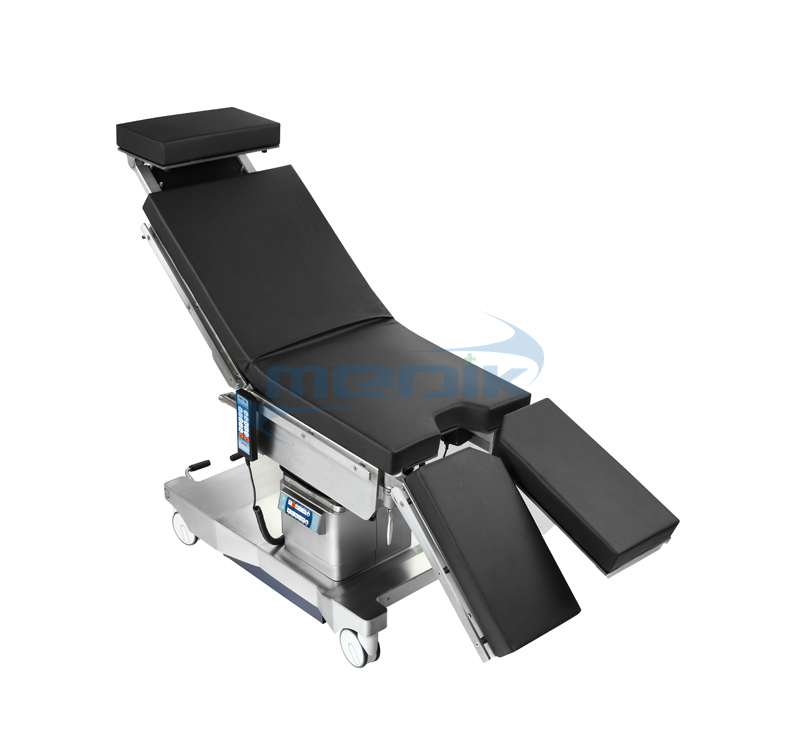

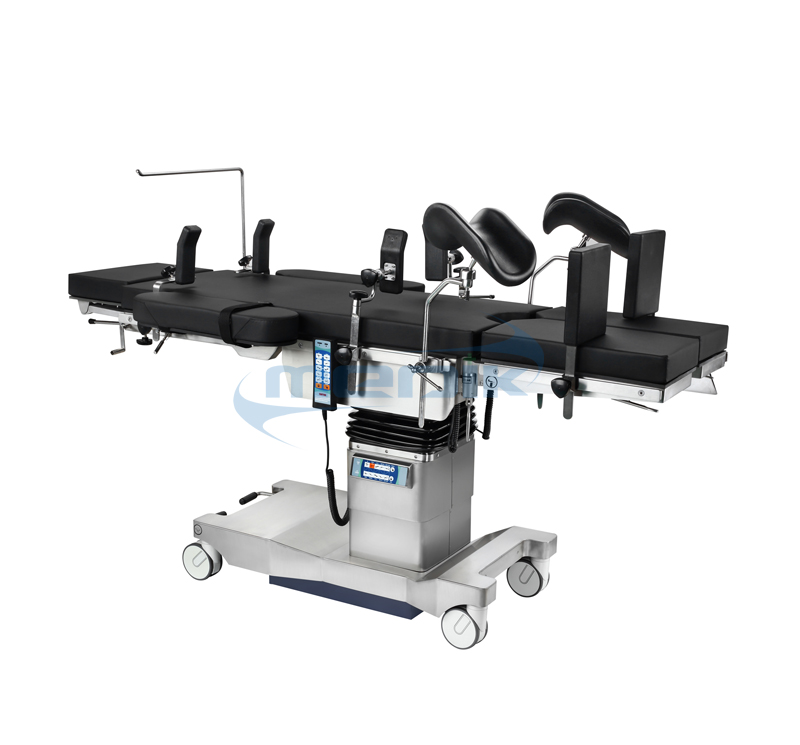

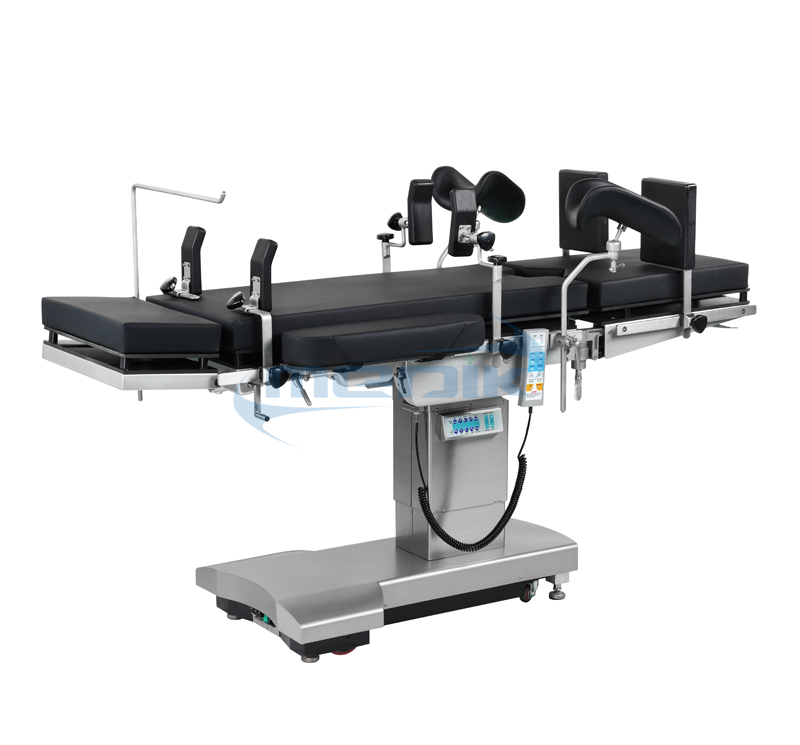

YA-ET500 Electric Surgical Table C-arm Compatible For OT Room

Model: YA-ET500

Overall Size: 2060*550*700-1000mm

Maximum Safe Load ：250kg

Functions: Head plate adjustment ,Back plate adjustment ,kidney bridge,Leg plate adjustment ,Trendelenburg/Anti-tredelenburg,Lateral tilt,Tabletop Sliding

Next Product Inquire Now

Product Details

Engineered for increasingly complex surgical scenes,YA-ET500 comes with intelligent automatic control system satisfying various demands of general surgeries.

Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.YA-ET500 is an ideal electric surgical table.

Technical parameters:

Technical Data
Tabletop Length/width	2060/550mm
Tabletop Elevation(up/down)	1000/700mm
Trendelenburg/Anti-tredelenburg	25°/25°
Lateral tilt	15°/15°
Head plate adjustment	45°/90°
Leg plate adjustment	down:90°,outward:90°
Back plate adjustment	+75°/-20°
Sliding	350mm
Kidney Bridge	110mm

Standard accessories

Anesthesia screen frame	1 piece
Shoulder support	1 pair
Armrests	1 pair
Waist support frame	1 piece
Leg support holder	1 pair
Foot support	1 pair
Hand remote	1 piece
Fixing clamp	8 pieces
