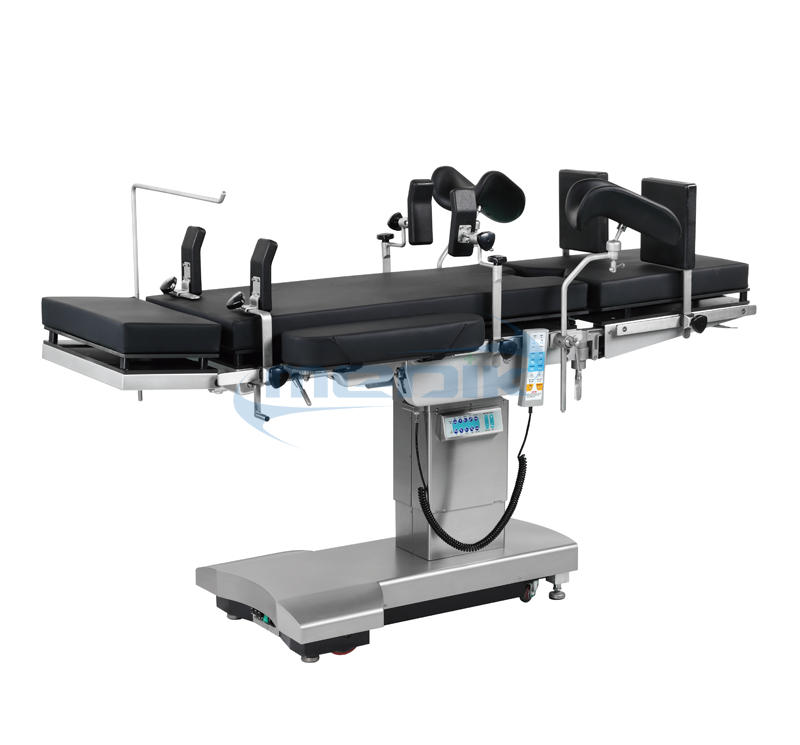

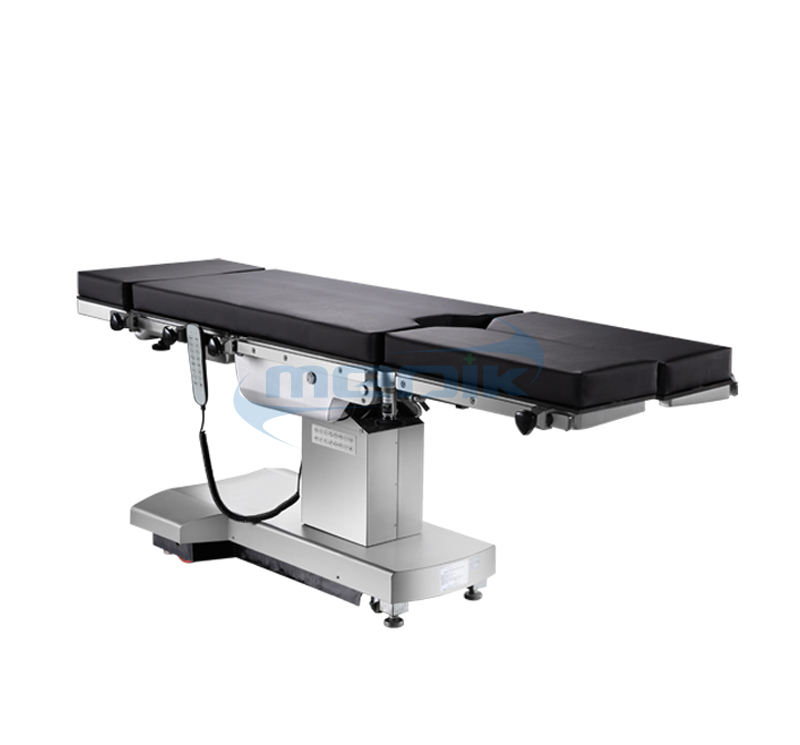

Advanced YA-ET700 Electro-hydraulic Operating Table

share

Model: YA-ET700

Overall Size: 1960*500*690-1100mm

Maximum Safe Load: 250kg

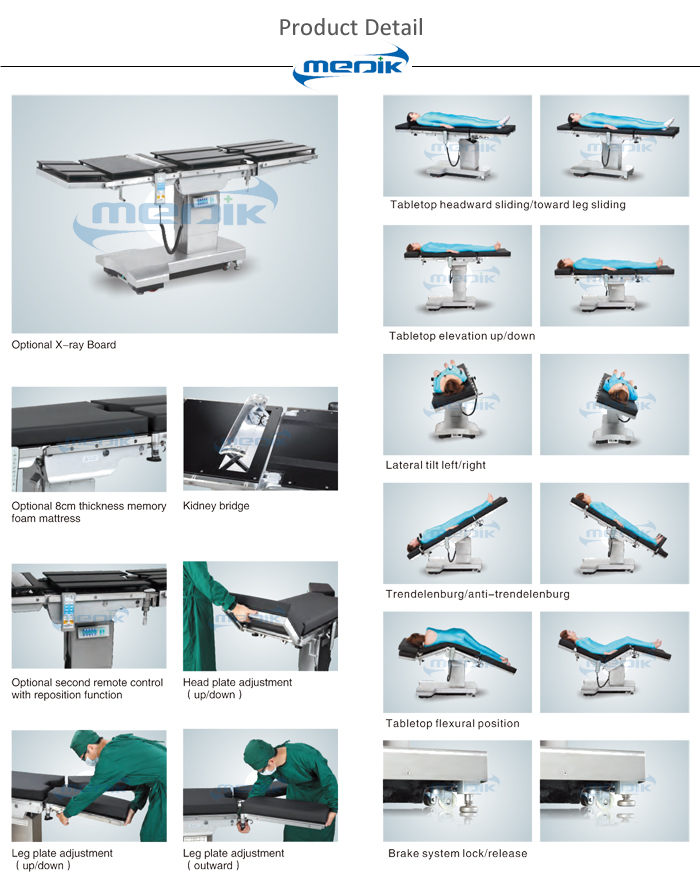

Functions: Head plate adjustment ,Back plate adjustment  ,kidney bridge,Leg  plate  adjustment ,Height adjustable ,Trendelenburg/Anti-tredelenburg,Lateral tilt,Tabletop Sliding


Product Details

Features:

*With reference to the advantages of congener products from home and abroad,can meet the demands of different positions  on operation.

*24V battery that meets the operating demands for one week,better ensure the table work under safe voltage.

*Electromotion facilitates the various adjustment of positions,intellectualized reposition enables the table a quick return to  horizontal position. Automatically lockable remote control in case of wrong operation.

*Large-scale elevation makes it easier for C-arm fluoroscopy examination .

*With built-in kidney bridge.suits for kidney operation .

*Optional traction for orthopedics,head rest for Aural surgery,extend functions of the table The cover all adopted premium 304 stainless steel,

the main body used cast aluminum,antirust and corrosionthe tabletop adopted phenol aldehyde Photograph board which is suitable for X-Ray.

* One button reposition function,designed and made specially for X-ray and C-arm use.

*Key parts,such as electrical pump and electromagnetic valve,adopted imported products from Taiwan.

Technical parameters:

Technical Data
Tabletop Length/width 1960mm/500mm
Tabletop Elevation(up/down) 1100/690mm
Trendelenburg/Anti-tredelenburg 30°/30°
Lateral tilt 18°/18°
Head plate adjustment 40°/90°
Leg  plate  adjustment up: 15° ,down:90°,outward:90°
Back plate adjustment +90°/-40°
Kidney bridge  110mm
Horizontal sliding 350mm

  Standard Accessories

Anesthesia screen frame1 piece
Shoulder support1 pair
Body support1 piece
Armrests1 pair
Long fixing clamp1 pair
Waist support frame1 piece
Leg support holder1 pair
Foot support1 pair
Hand remote1 piece
Fixing clamp8 pieces
