Main features

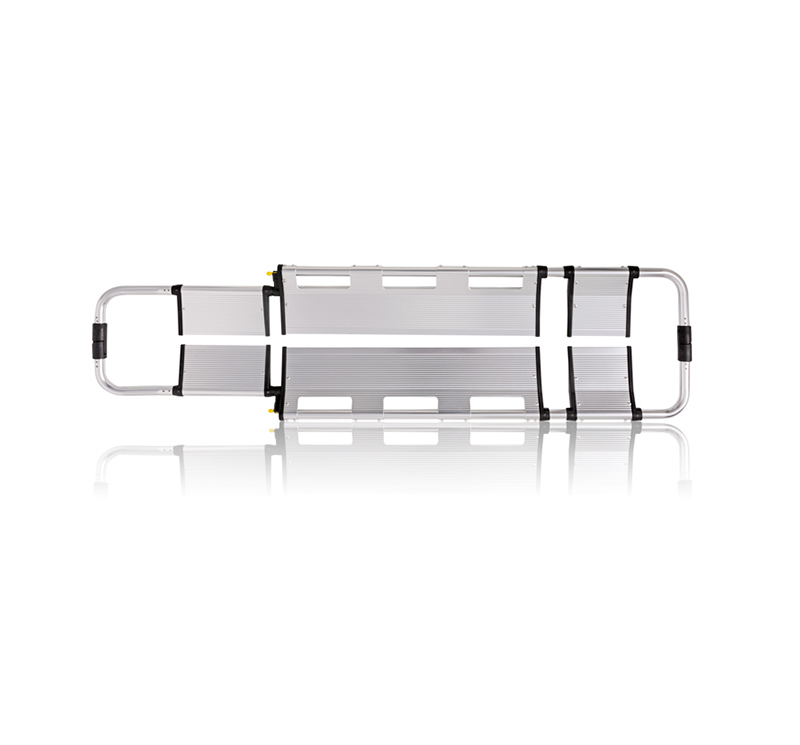

- It's a separable-type emergency stretcher for ambulances to transfer fractured & serious patients.
- Equipped is with a clutch hinge in the middle of both ends, which can separate the stretcher into two parts.
- The stretcher could strengthen the patients at the origin place which could reduce the further hurt to the patients.
- The patient can be quickly & easily put in the stretcher and also the stretcher can be taken out from the back of the patient without moving the patient.
- The length of the stretcher can be adjusted according to the patient's body.
- The foot-end is designed as a narrow-frame structure.
- It is made of high-strength aluminum alloy materials.
- It is characterized by its being light-weighted, small-sized, easy-carried, use-safely and easy for sterilization and clean.
Technical parameter
Model | YA-SC02 |
Product Size(L- W- H) | 2100 * 440 * 60mm |

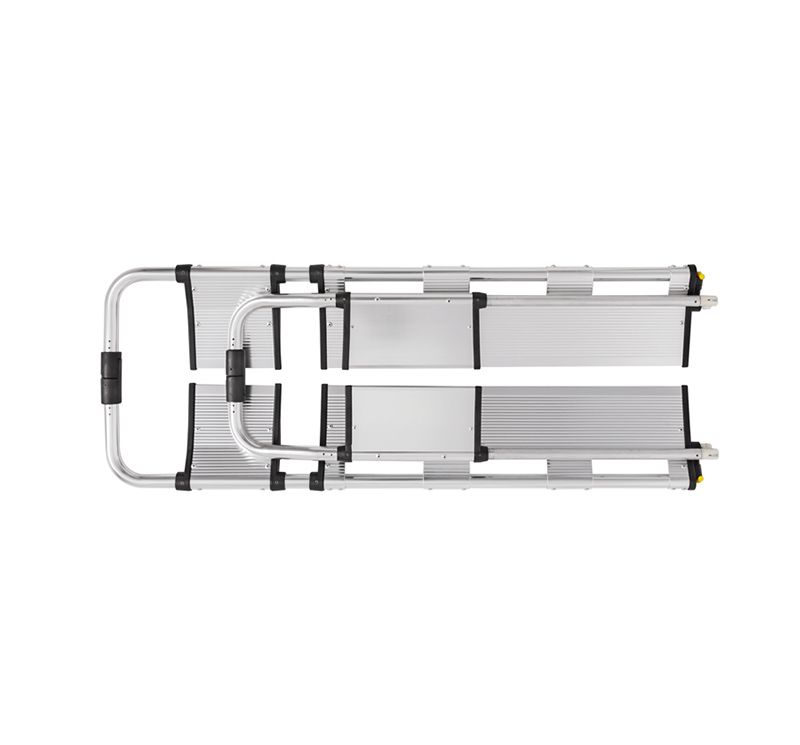

Folded Size(L- W- H) | 1200 * 440 * 90mm |
Packing Size(1pcs) | 1700 * 460 * 80mm |
Loading Limit | ≤159kg |
N.W | 8.5kg |
G.W | 10.2kg |
