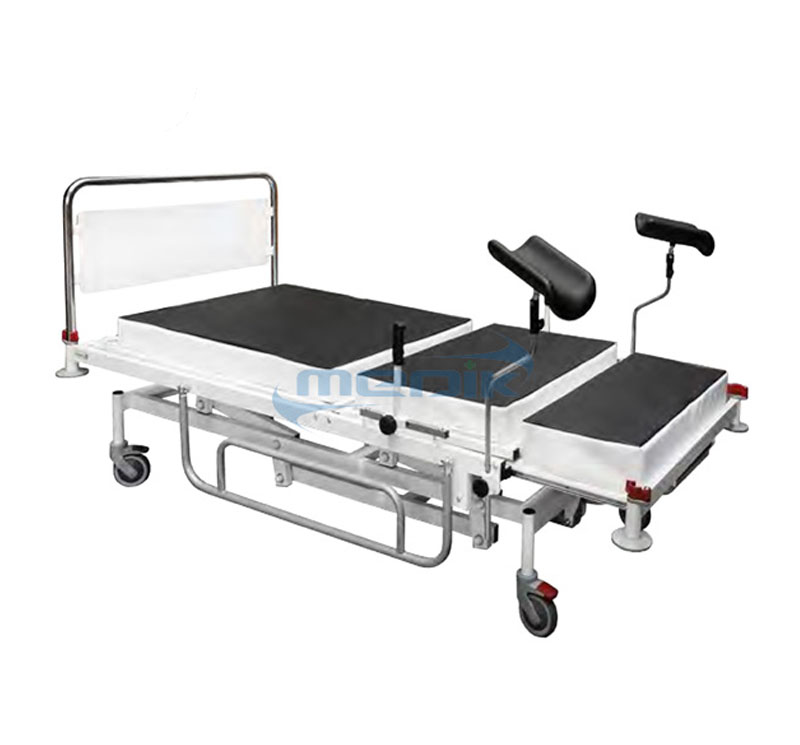

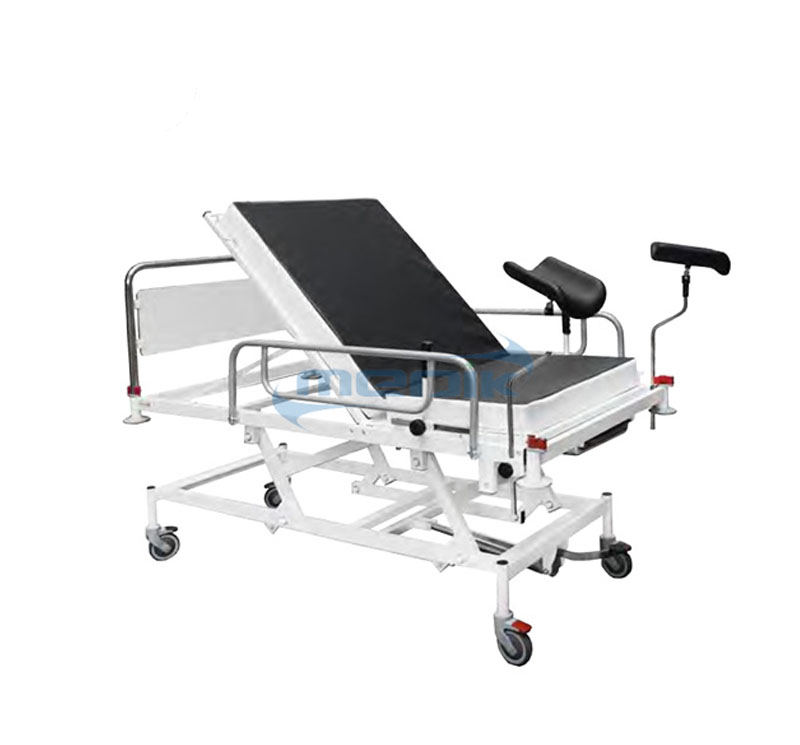

MC-H03 Hydraulic Delivery Bed With Siderail

share

Model: MC-H03

Overall Size: 2000*900*600-950mm

Loading capacity: 250kgs

Structure: Epoxy coated steel with 8cm foam mattress

Application: For childbirth, gynecology surgical operation etc.


Product Details

Application:

The birthing bed has been designed focusing particularly on ergonomics, safety and mobility. Suitable for all stages of labour and for hospitalization pre and after labor. The midwife can easily access to mother from different positions thus improving ergonomics and safety.



Key features:

Adjustable leg rests for ergonomic positioning with locking of the clamp into different positions.

Bed ends removable instantly via quick release mechanism.

Wide mattress base.

More comfortable anatomical leg rest.

Side handles for enhanced pushing force.

Foldable side rails.

Easy to get in and out thanks to low minimum height.

Can also be used for transportation inside the hospital.

Easy-to-clean structure.

Designed to ensure the best possible use without the need of electricity power supply.

All adjustments in this model are manual.


Specification:

Model : YA-SC101Overall Bed size: 2000*900*600-950mm
Filth basin size: 550*900*80mm
Application: For childbirth, gynecology surgical operation etc.
Functions of bed:
1. HI-LOW:600-950mm by a hydraulic pedal
2. Back section turning up ≥70° by crank
3. Leg section telescope: 550mm
4.Trendelenburg≥12°and Reverse-Trendelenburg≥12° by 2 racks
5.Four 125mm castors ,two with brake
Functions of accessories:
Foldable side rails, detachable head/foot board
Accessories:
1 set waterproof cushion, 1 pair side rails, 1 pair leg holders,1 pair head/foot board
1 pc foot switch, pairs of clamps, 1 pc I.V. pole
Structure: Epoxy coated steel
Loading capacity:250kgs
