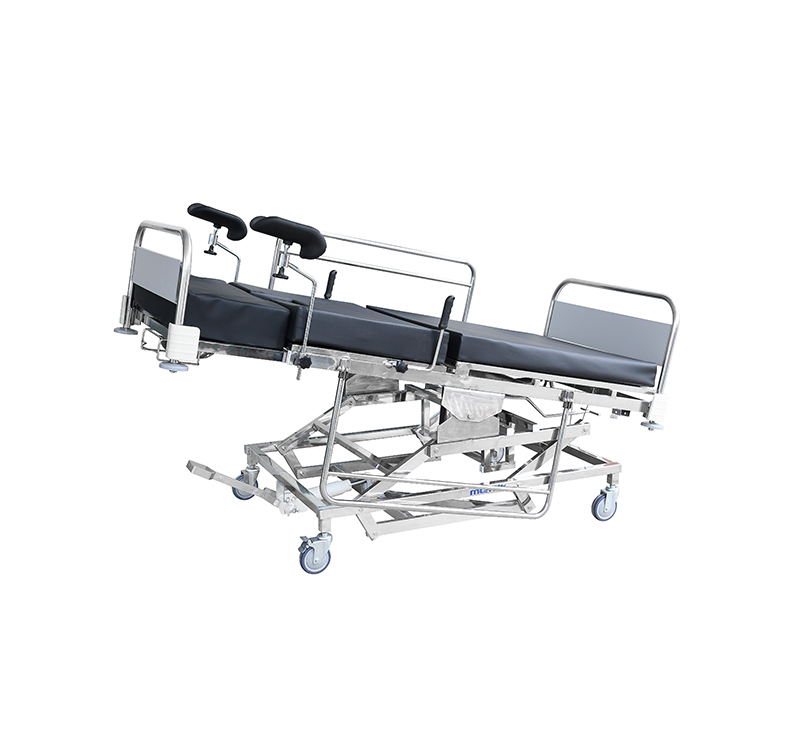

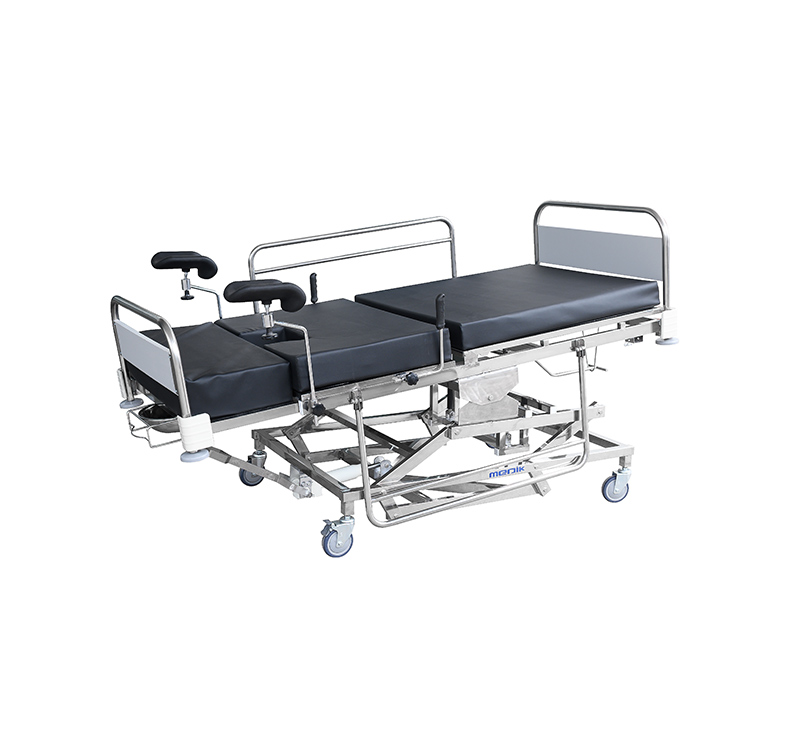

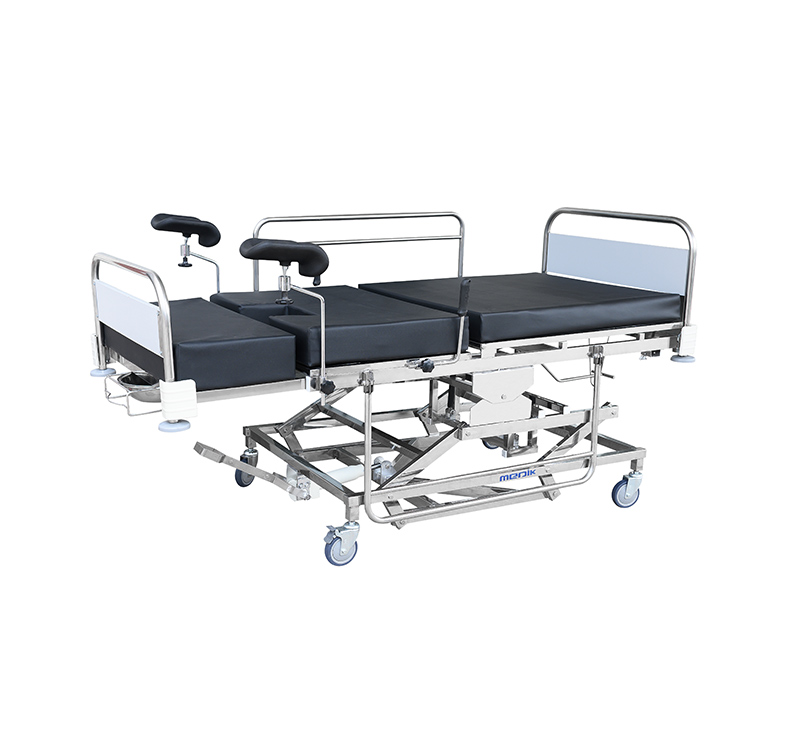

MC-H03 Hydraulic Delivery Bed With Siderail

share

Model: MC-H03

Overall Size: 2000*900*600-950mm

Loading capacity: 250kgs

Structure: Stainless steel frame with foam mattress

Application: For childbirth, gynecology surgical operation etc.


  • Product Details

Watch Video


The delivery bed has been designed focusing particularly on ergonomics, safety and mobility. Suitable for all stages of labour and for hospitalization pre and after labor. The midwife can easily access to mother from different positions thus improving ergonomics and safety.

Specification

Model MC-H03
Overall Bed size2000*900*600-950mm
Filth basin size550*900*80mm
HI-LOW600-950mm
Back section turning up80°
Leg section telescope550mm
Trendelenburg andReverse-Trendelenburg15°
CastorsDia125mm
Loading capacity250kgs

Main feature

- Adjustable leg rests for ergonomic positioning with locking of the clamp into different positions.

- Bed ends removable instantly via quick release mechanism.

- Wide mattress base.

- More comfortable anatomical leg rest.

- Side handles for enhanced pushing force.

- Foldable side rails.

- Easy to get in and out thanks to low minimum height.

- Can also be used for transportation inside the hospital.

- Easy-to-clean structure.

- Designed to ensure the best possible use without the need of electricity power supply.

- All adjustments in this model are manual.

- Foldable side rails, detachable head/foot board

- Four 125mm castors ,two with brake

Accessories

- 1set waterproof cushion,

- 1 pair side rails,

- 1 pair leg holders,

- 1 pair head/foot board

- 1 pc foot switch, pairs of clamps,

- 1 pc I.V. pole
