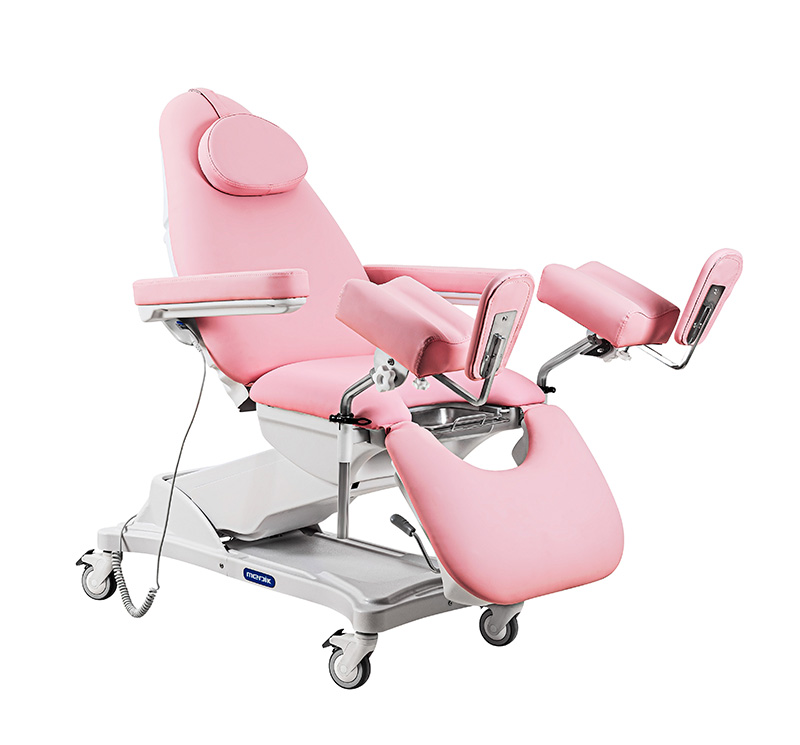

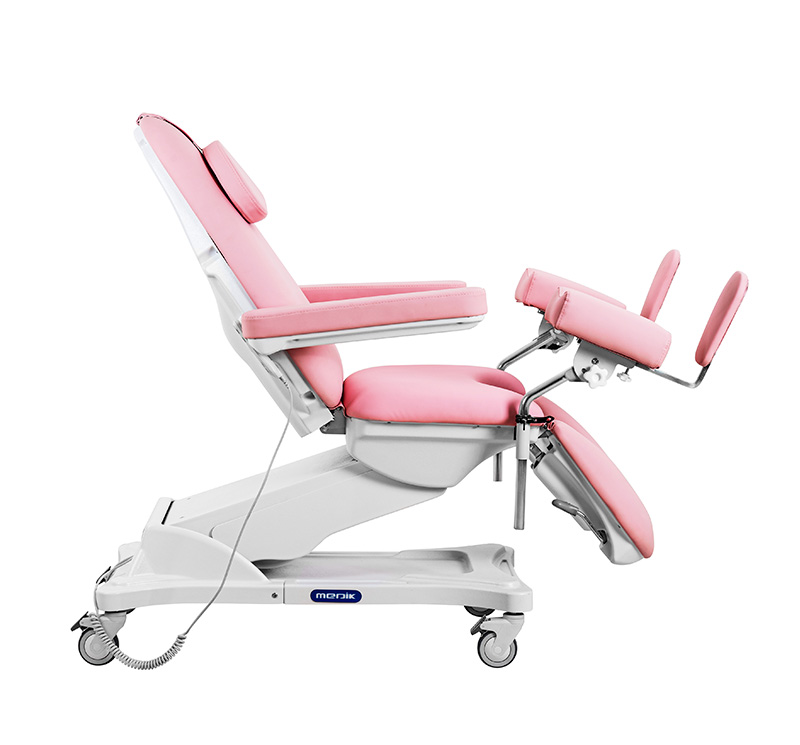

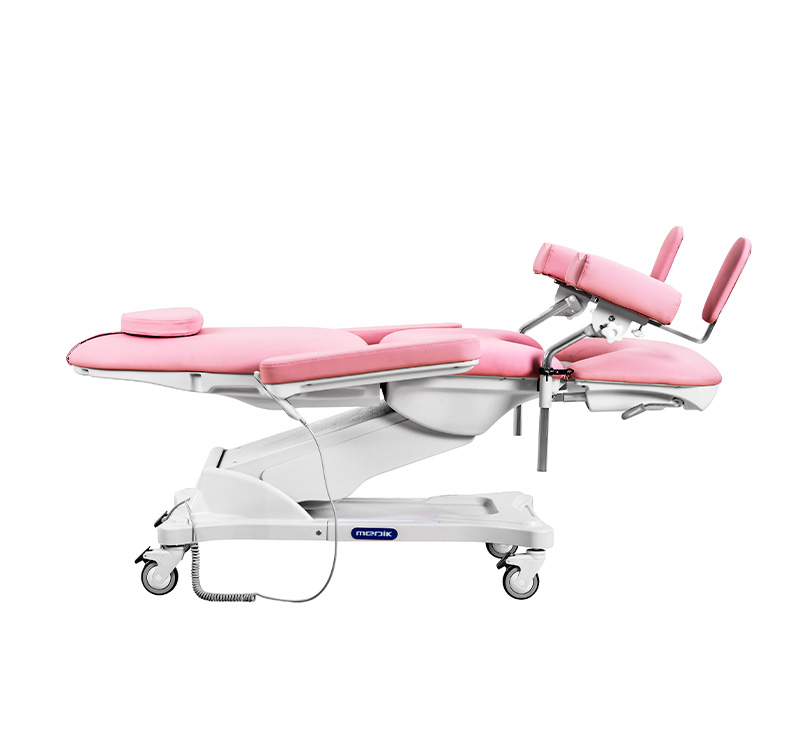

The humanized seat cushion heating design, multi-angle adjustment of leg support, and stable motor drive make the MC-D17 a beautiful and superior-performance gynecological examination chair. The multi-angle adjustment and detachable functions of various parts make it meet various posture needs during gynecological examination.
Main features
- Humanized design, seat heating function
- High-strength plastic cover, waterproof and antibacterial cushion, easy to clean and disinfect
- Electrically adjustable height and back section
- Leg section adjusted by gas spring
- The armrest automatically maintains a horizontal position,removable
- Remote control with lock button to prevent accidental touch
- The leg support can be adjusted at multiple angles to achieve the best production and inspection position
- 4 wheels for easy movement
- Removable full stainless steel filth basin
Technical parameter
| Model | MC-D17 |
| Overall size | 1730*860*640~910mm |
| Back section up | 0~85°±5° |
| Leg section down | 0-80°±5° |
| Height adjustment | 640~910mm |
| Back section length | 830mm |
| Seat section length | 470mm |
| Leg section length | 430mm |
| Lying surface size | 1730*570mm |
| Armrest size | 560*100mm |
| Leg support swing-out | 360° |
| Leg support height range | 30cm |
| Leg support forward and backward | 45°,35° |
| Foot support height range | 30cm |
| Safe working load | 220kg |
