Home / Products / Exam Table
Model: YA-ET301D
Overall Size:1950*660*470-920mm
Load Capacity:225kg
Description:
Electric examination table has a very strong table designed to withstand constant heavy use with minimal maintenance.Examination table is designed for both the hospital and private practice. It offers superior comfort for examination, therapy, massage and medical gymnastics.
Technical parameters:
Model | YA-ET301D |
Overall size (L*W*H) | 1950*660*470-920mm |
Back Section Length | 670mm |
Body Section Length | 1230mm |
Load capacity | 225kg |
Foam Thickness | 50mm |
Foam Density | 36g/m2 |
Packing | 1900*720*560mm (Heavy carton) |
N.W./G.W. | 65/78kgs |
20GP/40GP | 32/68pcs |
Adjustable Height | 470 – 920mm |
Backrest adjustable angle | -20°. to +75° |
Standard Specification:
One electric motor, standard supports "Timotion" brand for Hi-Lo function.
The frame feet (*4) make round shape, avoid to hit people.
Add more material make better designed for some frame parts.
Retractable castors 75mm for excellent mobility and safety.
Electric treatment table make a new design for triangular parts.
Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

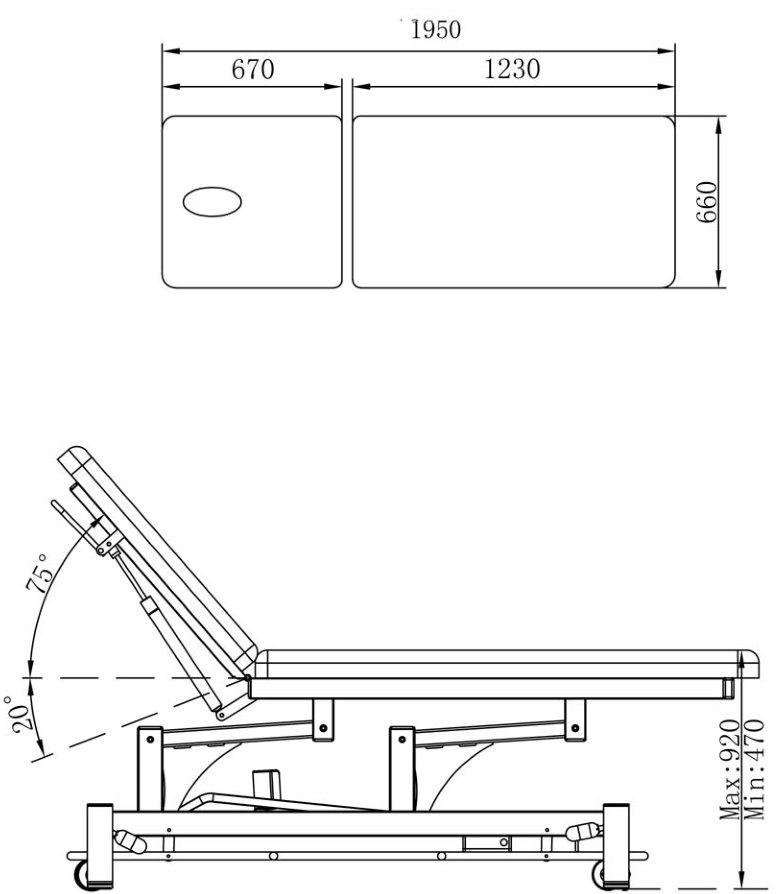

Size picture:
