| Technical parameters |

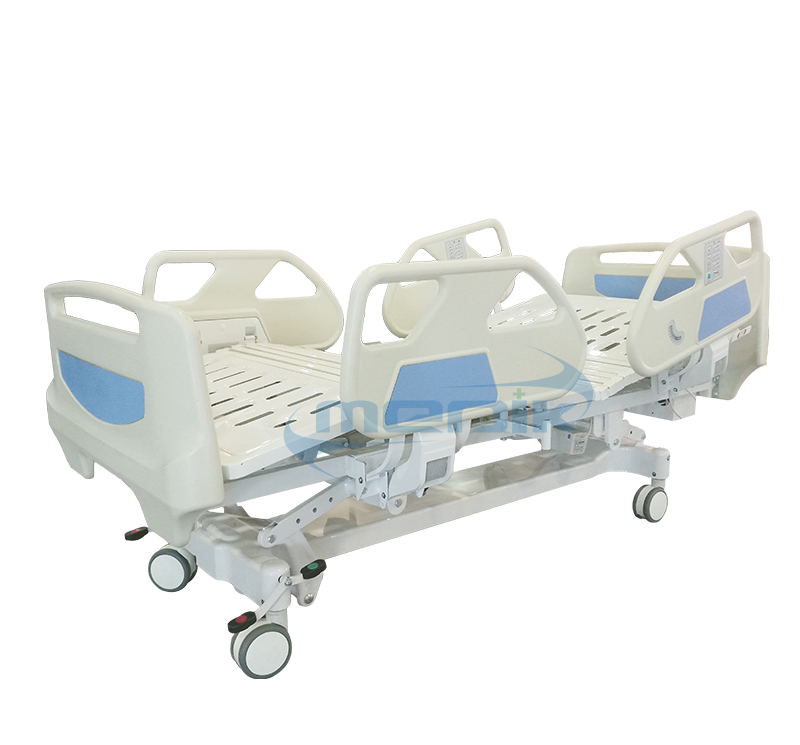

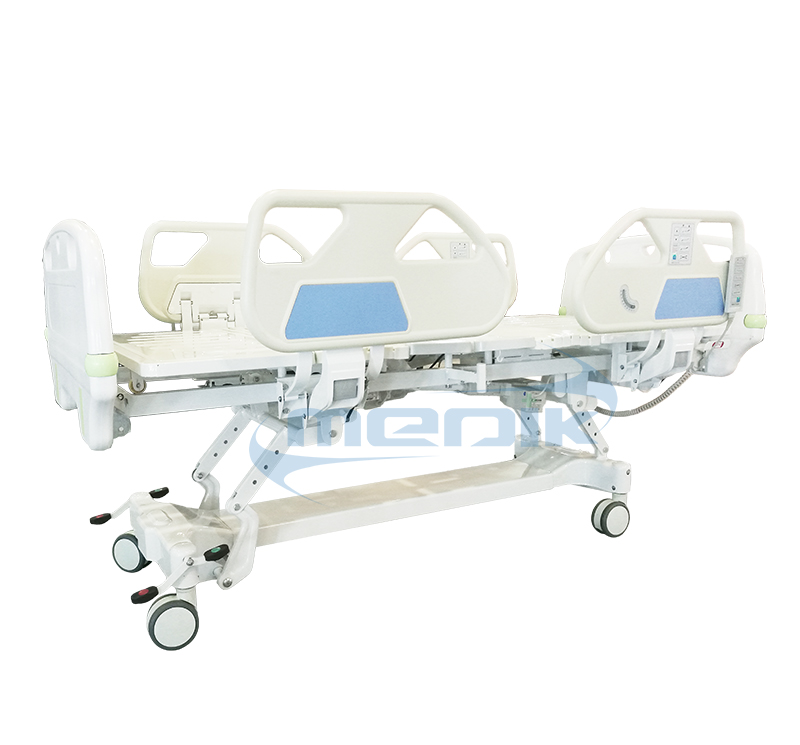

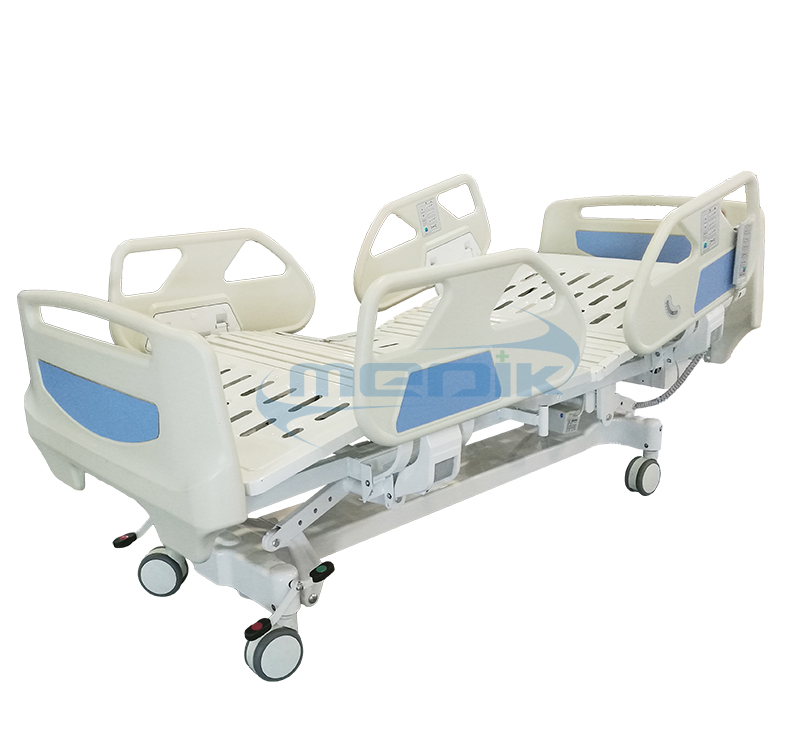

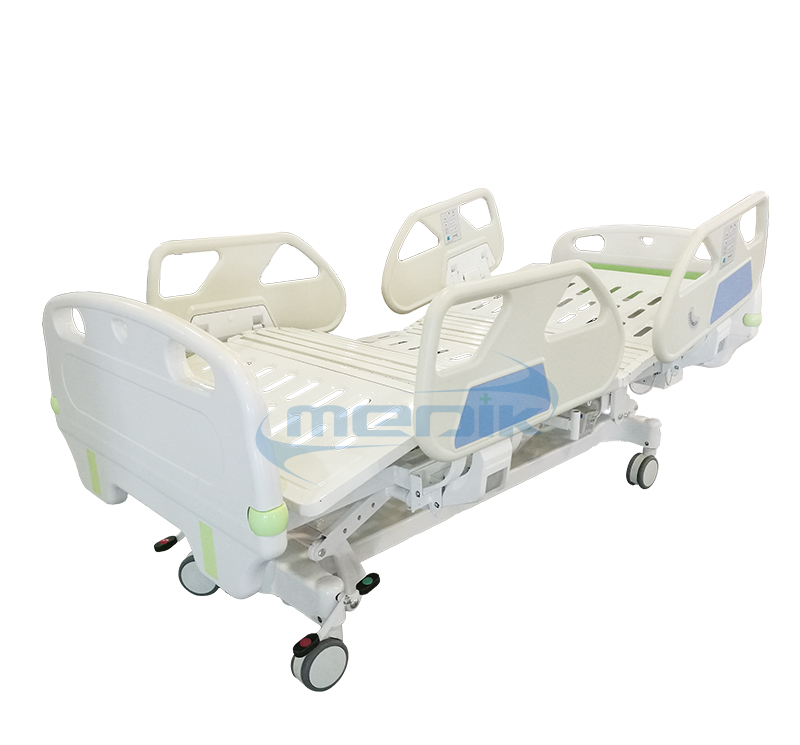

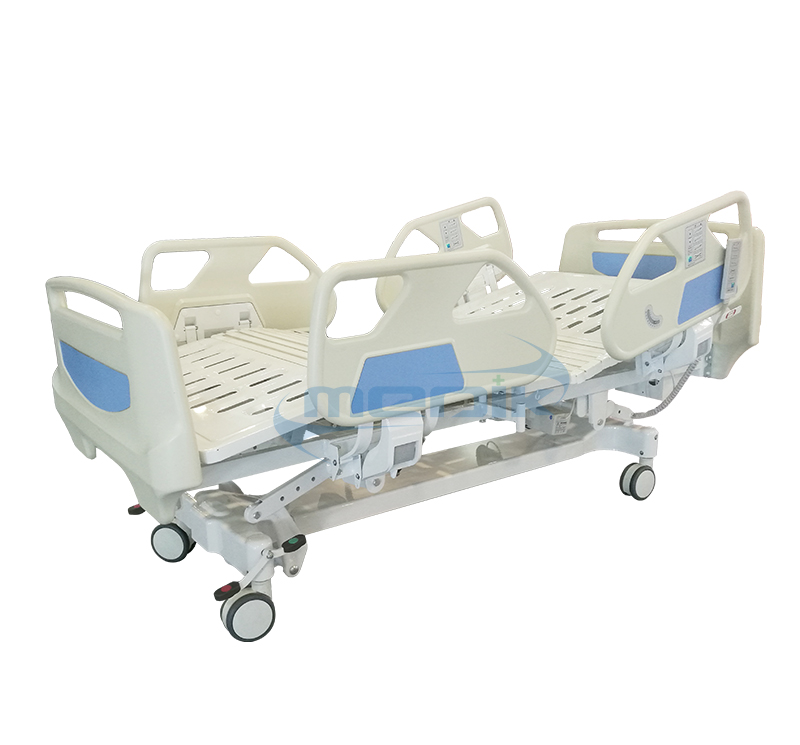

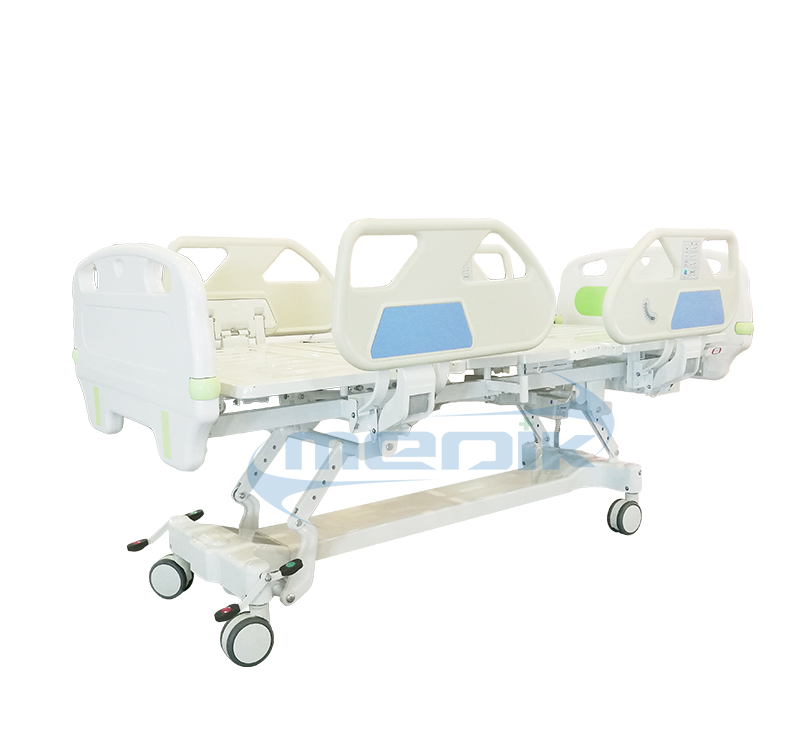

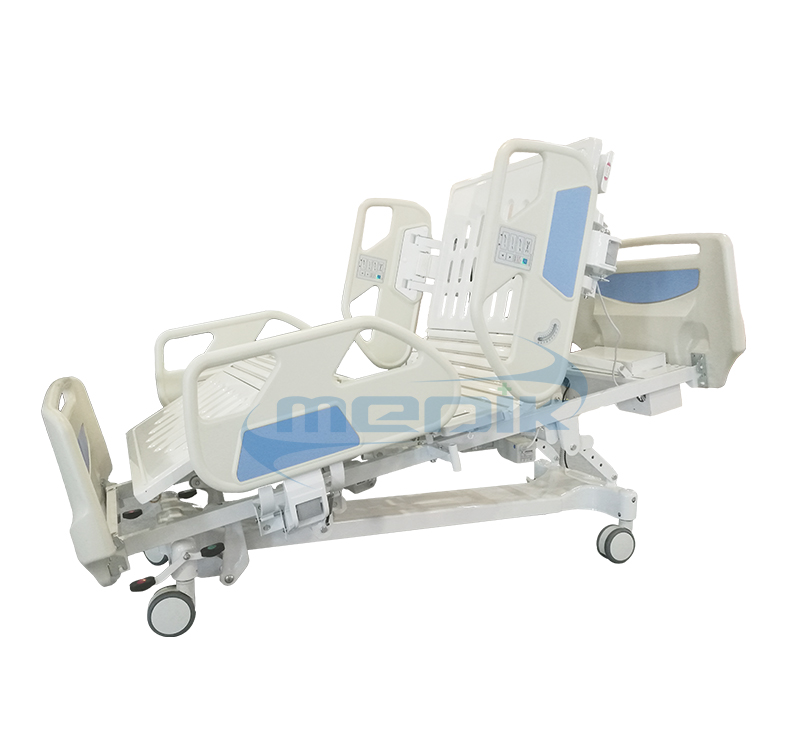

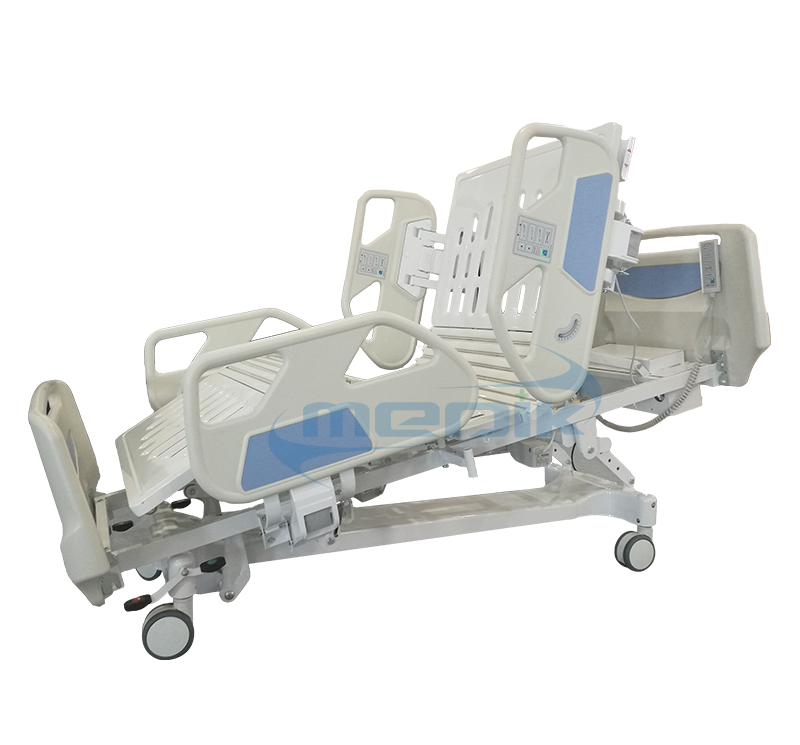

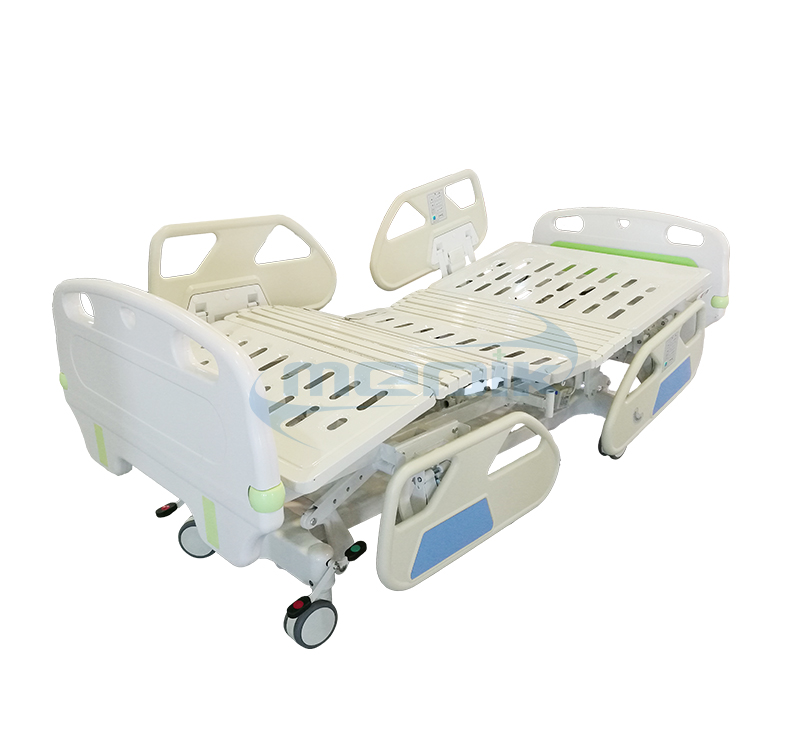

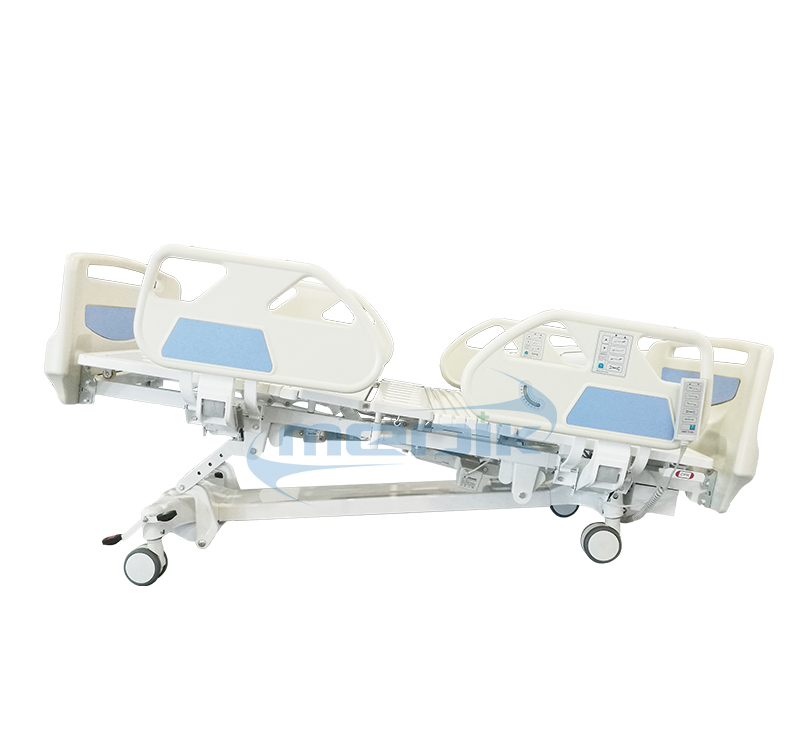

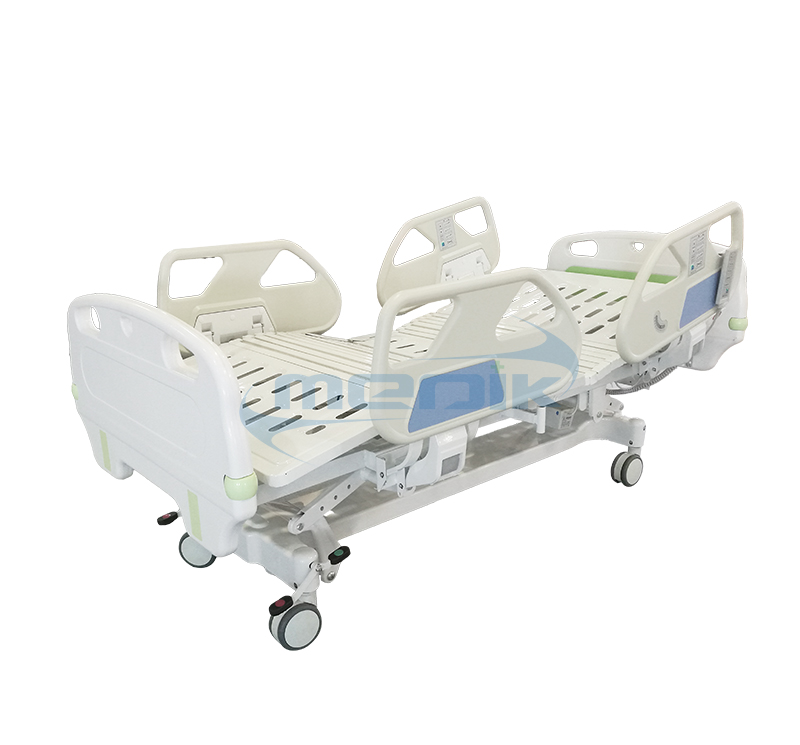

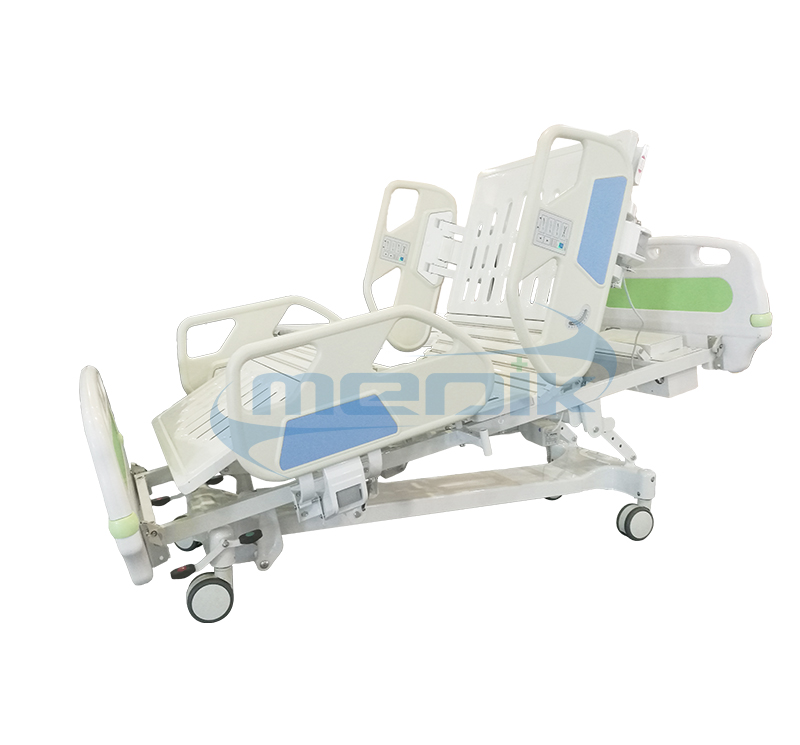

| Model | YA-DR5PCS |
| Size | 2200*1060*480-750mm |
| Recommended mattress size | 1950*900mm |
| High-Low: | 480-750mm |

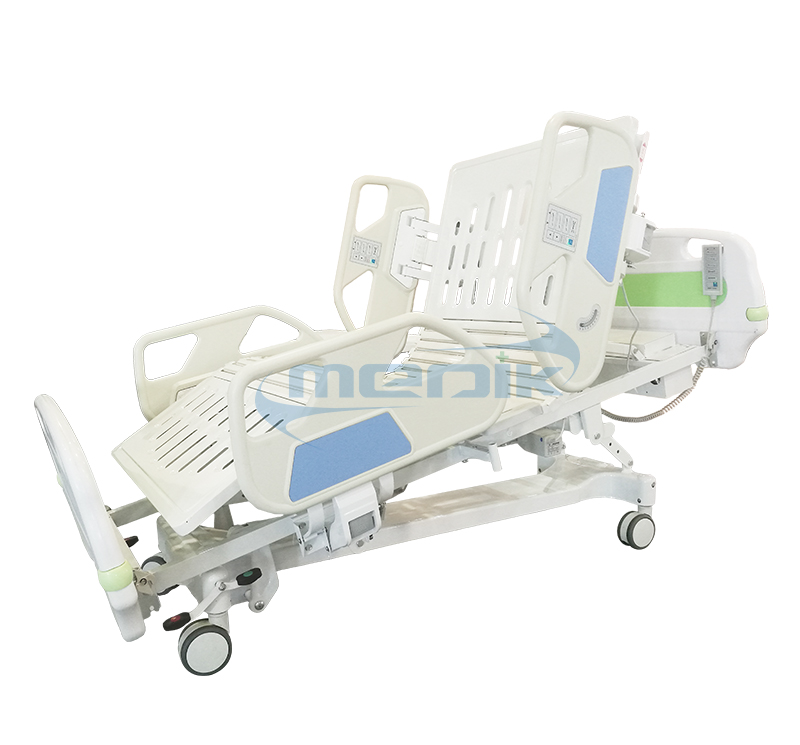

| Back secticn adjustable | 0° to 75° |
| Knee secticn adjustable | 0° to 40° |

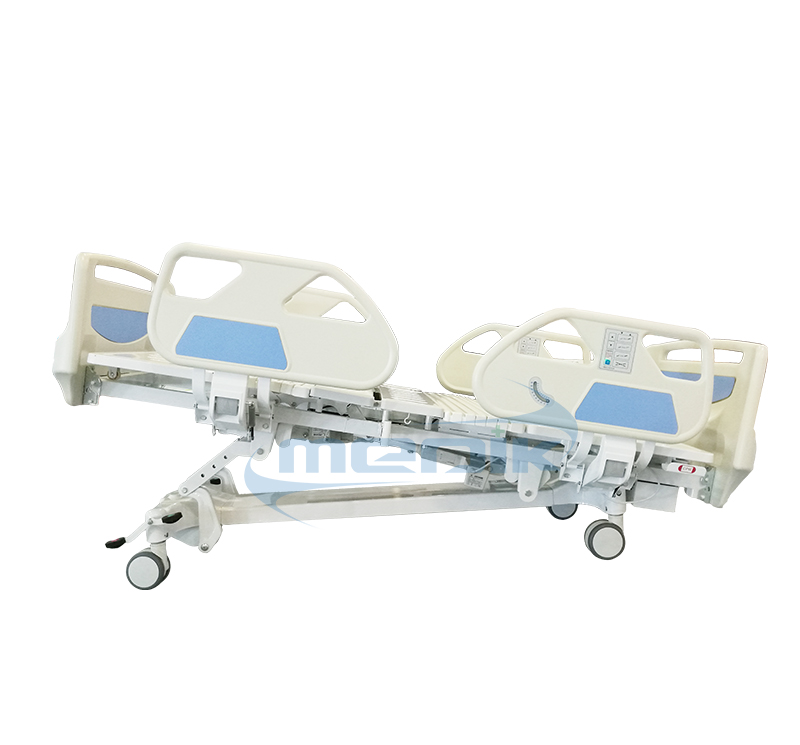

| Trendelenburg | 0° to 12° |
| Reverse trendelenburg | 0° to 12° |
| Safe working load | 225kg |
| Specification |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation holes and ABS soft connection between section joints, molded forming |
| Motor | Quiet and robust electric actuators provide reliable operation |
| Build-in controller can control all electrically operated functions and movements |
| Handrails | Four split side rail,drop down |
| Head and Foot board | ABS material, detachable |
| Castors: | Central brake system with wheel diameter of 125mm |
| Controller | Hand remote control |
| Patient control inner constructed in side rails |
| Bumper castors | Bumper castors on 4 corners of bed |
| Angle indicator | With angle indicator embeded in the railing for back and trendenleburg adjustment(optional) |
| Special Features |
| Auto-counter function | Auto-counter to provide the patient from sliding onto foot end |
| Mechanical CPR function | Control by the CPR handles on both sides of bed to realize the CPR procedure in one step |
| Standard Accessories: |
| Head/Foot Board | 2 pieces |
| Side Rails | 4 pieces |
| Bed Frame | 1 set |
| Bed Boards | 5 pieces |
| Casters | 4 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
