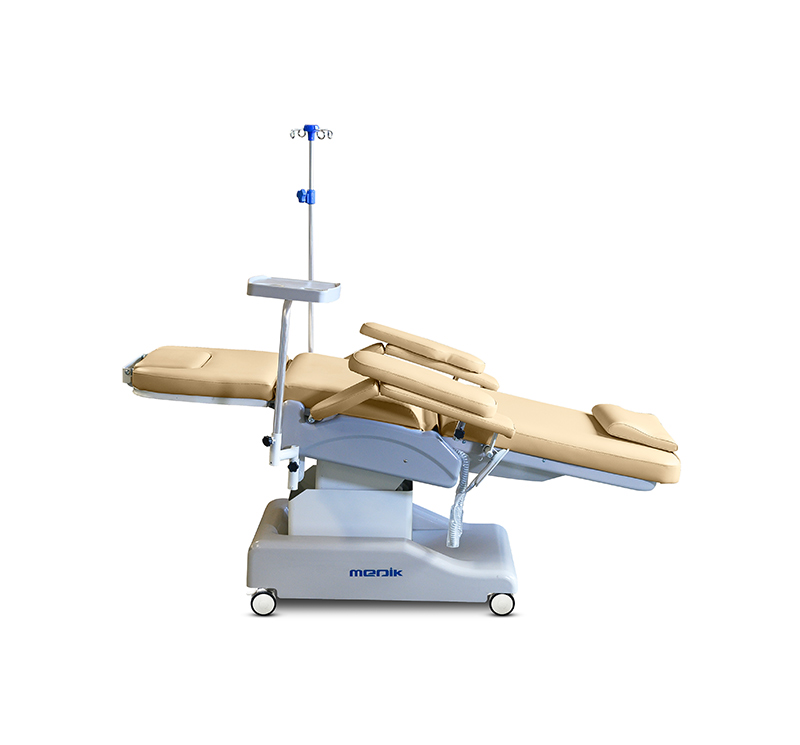

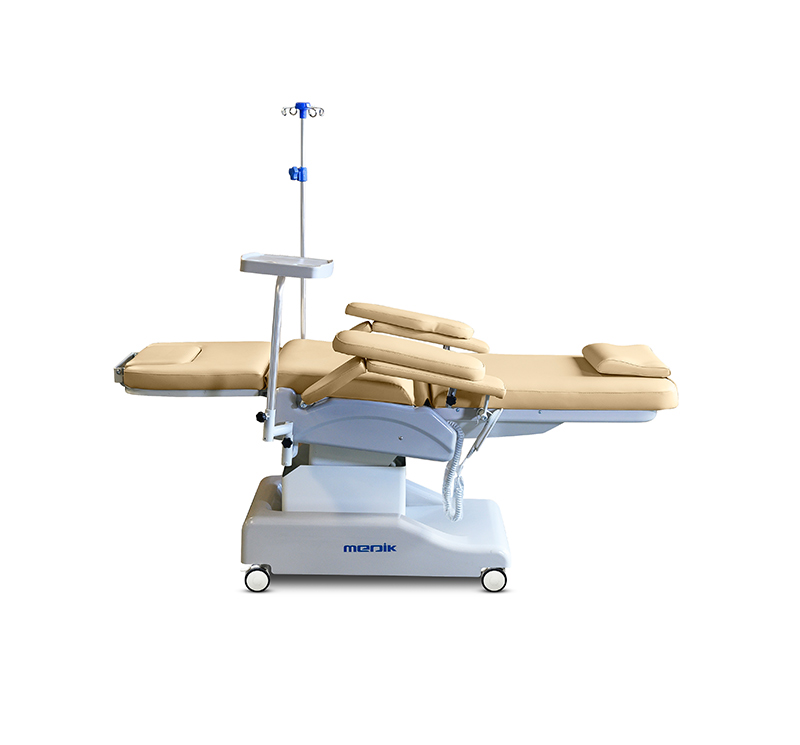

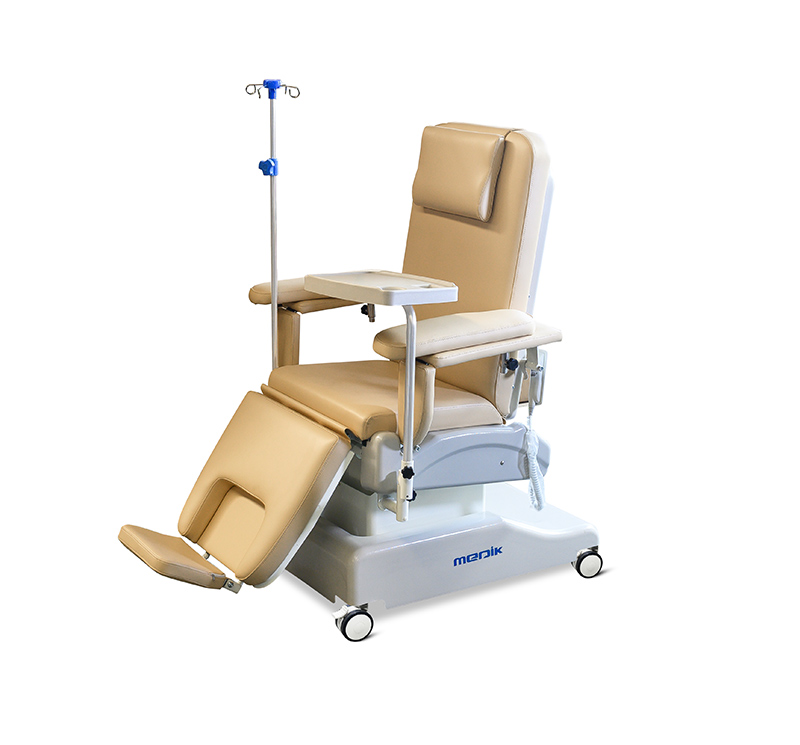

YA-DS-D10 Comfortable Outpatient Dialysis Chair On Wheels


Model:  YA-DS-D10

Overall size:  1950 * 900 * 580 - 780mm

Loading capacity:  240kg

Color options:  Green, Blue, Yellow

Application: Ideal for dialysis centers, blood donation centers and nursing homes.

Certificate: ISO/CE

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details
  • Downloads

The YA-DS-D10 comfortable dialysis chair is ergonomically designed, which can better provide patients with more comfortable environment, reduce the psychological pressure of patients, and make the process of blood donation or dialysis more comfortable. Ideal for dialysis centers, blood donation centers and nursing homes.


- Ergonomic design gives blood donors a sense of security and comfort and alleviates the psychological pressure, makes the whole process easier and enjoyable.

- The appearance is made of high-strength fiber material and poly-layer paint

- Upholstery with 60mm thick foam

- Equipped with 3 motors for height, back, leg rest and Trendelenburg adjustment

- Chair frame is made of premium powder-coated steel

- Four ø 100 mm casters with individual locking systems are included to facilitate the movement of the donor chair.

Technical parameter

Overall size1950 * 900 * 580 - 780mm
Back section length830±20mm
Seat section length520±20mm
Leg section length530±20mm
Seat section width600±20mm
Pillow size380*250*70mm
Armrest size500*180*40mm
Armrest swing out0-180°
Back section adjustment-12°~75°
Leg section adjustment-75°~12°
Height adjustment580-780±20mm
Trendelenburg position0-12°
Loading capacity240 KG
