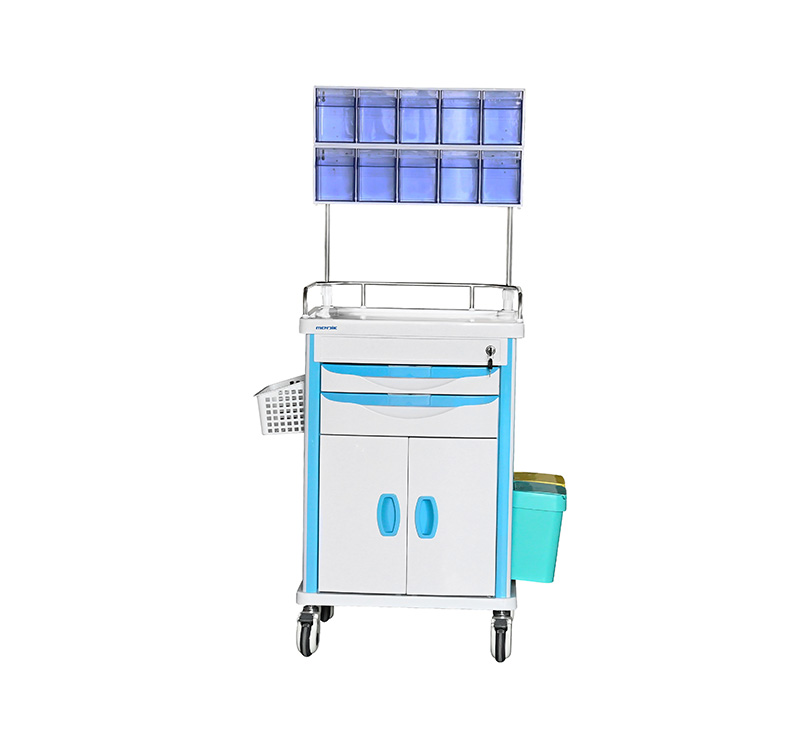

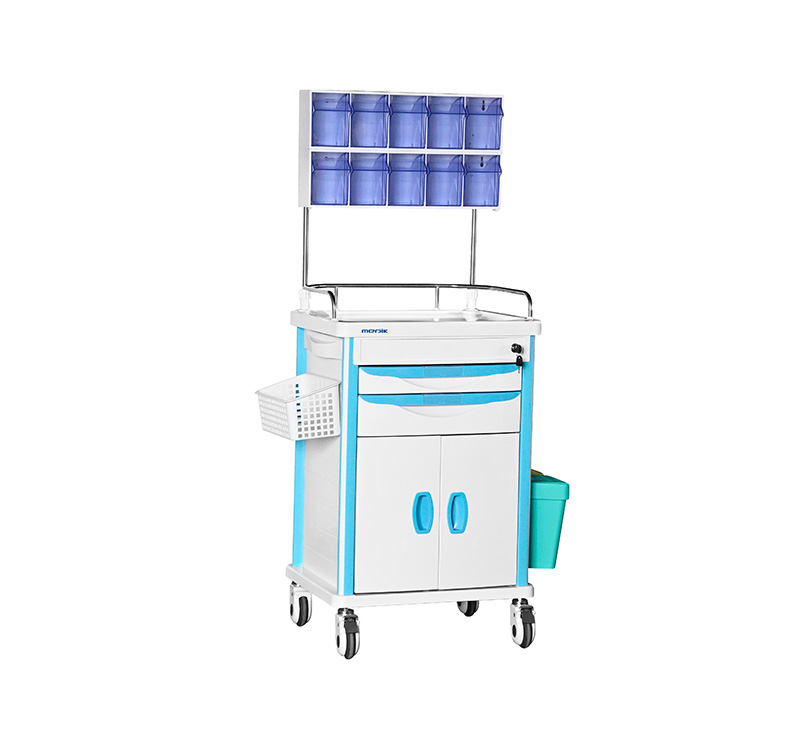

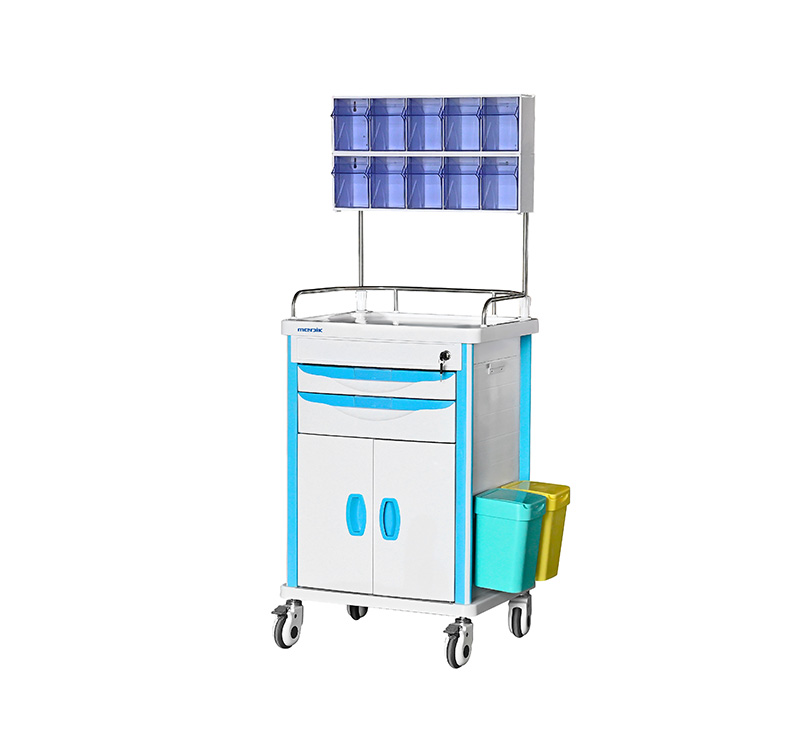

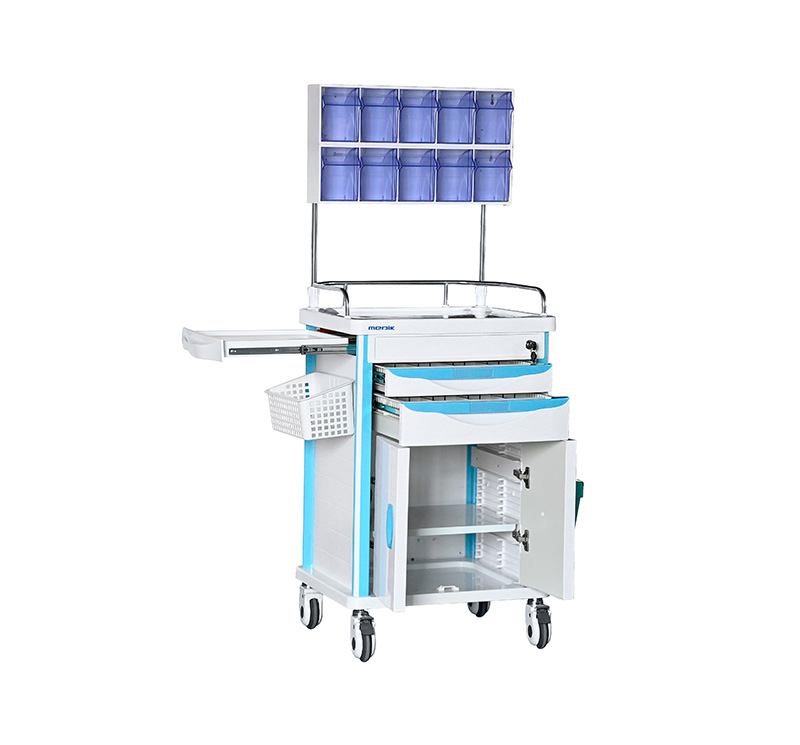

The MK-P09 Anesthesia Cart is designed with a synergy of function and technology to meet the unique needs of your anesthesia department. Flexible partition systems, removable drawer trays and double-door storage cabinets provide ample space for various medical equipment and supplies.
Feature
- Structure: Four columns made of plastic-covered steel with ABS body
- ABS plastic top board with arc handle and protruding edge
- Side rails: 3 pcs, Stainless steel, around the top board for protection
- With transparent multi-bin containers at top of trolley
- Four 100mm castors and two with brakes
- With two drawers and two cabinets: each inner of drawer with partitions which can be organized freely, each inner of cabinet with separations, besides, each drawer with label card holder
Technical parameter
| Model | MK-P09 |
| Overall size | 625*475*950mm (24.6″ × 18.7″ × 37.4″) |
| Packing size | 650*550*1050mm (25.6″ × 21.7″ × 41.3″) |
| N.W | 47kg |
| G.W | 50kg |
Drawer specification
| Height | Depth | Width | |
| Small | 6.8cm (2.68″) | 35.5cm (13.98″) | 43cm (16.93″) |
| Middle | 11cm (4.33″) | 35.5cm (13.98″) | 43cm (16.93″) |
