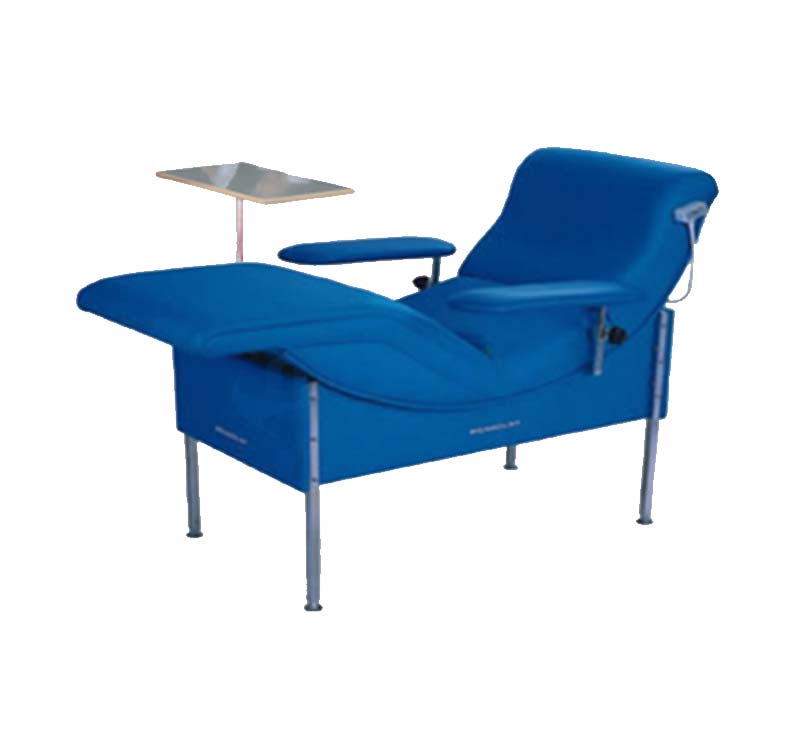

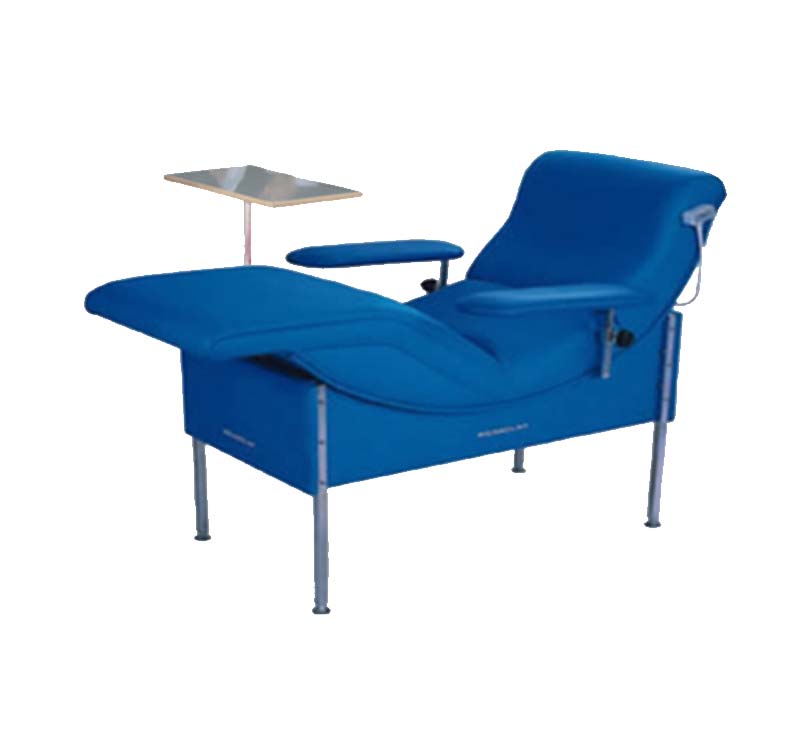

YA-DS-M04 Manual Blood Collection Chair

share

Application:

· Blood Donation Centers

· Hospital Donor Rooms

· Clilnic Donor Rooms

· Dialysis Centers

· Infusion and Vascular access centers

· Med Spas and Dermotology offices

· Podiatry Medical Offices


Product Details

Product performance:
1.The chair surface adopts curved streamlined design, the head pillow-shaped, the leg is higher than the level of the buttocks, the height of the armrest can be adjusted;
2. The chair surface is a flexible mattress, high-quality medical PU leather, made of polyurethane foam and handmade bag system;
3.The chair frame is made of high-quality steel, the surface of which is made by the special process of electrostatic coating and baking at a high temperature of 250 ° C for long-term use, beautiful appearance, comfortable texture and easy cleaning;
4.Small table can be adjustable;


Technical Parameters:
1. Seat size (length × width): 1900mm × 580mm
2. Chair surface height: 550mm
3. Back section angle: 65 °
4. Leg section angle: 20 °
6. Handrail size (length × width): 460mm × 160mm
7. Handrail swing angle: 0 ° ~ 45 °
8. Handrail tilt angle: -10 °
9. Armrest up and down adjustment distance: 0 ~ 100mm
10. Small table size (length × width): 400mm × 350mm
11. The maximum load weight: ≥ 180kg
12. Weight: 60kg


Configuration instructions:
Standard configuration:
1. Flexible cushion: 1 set
2. Handrails: 1 pay
3. Soft velvet cushion cover: 2 sets
4. Small desk stand: 1 set
5. Cup holder: 1
6. Manual manipulator: 1

 Optional configuration:
1. DVD multimedia player system: 1 pieces
2. HiFi Headphones: 1 piece
3. LED Hose exclusive reading light: 1
