Main features

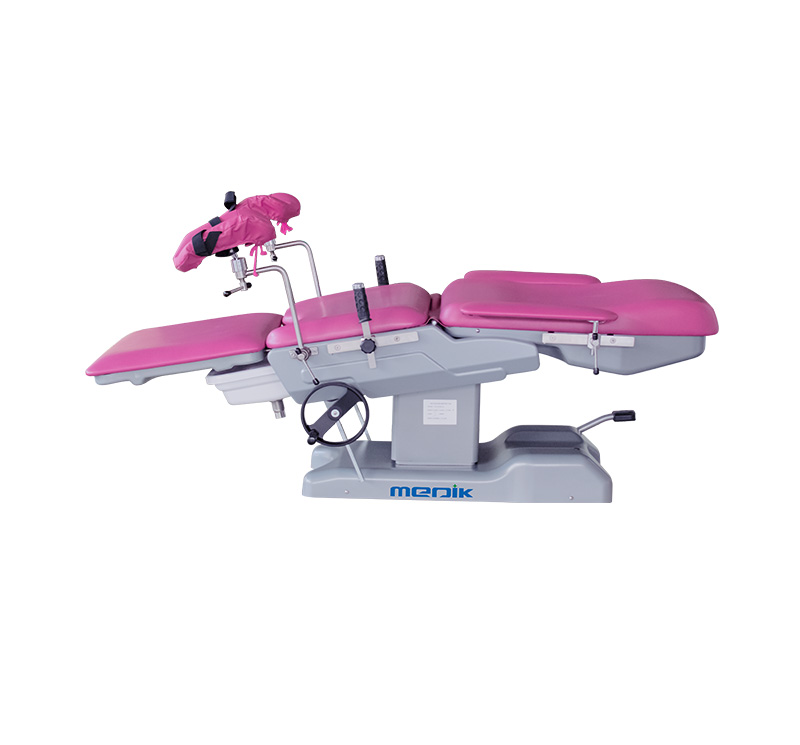

- The MC-H02 hydraulic obstetric table is equipped with a auxiliary table for gynecological examinations and treatments
- The leg segment (auxiliary table) can be easily detached
- Height adjustment of the table realized due to hydraulic pump regulated by foot pedal
- Back segment inclination angle regulated by gas spring
- Trendelenburg and Reverse-Trendelenburg positions are realized by ratchet system
- The chassis is constructed of steel with ABS cover
- With 3 wheels to move the table and it is easy to use the hammer to lock the wheels anchored to the floor
Technical parameter
| Model | MC-H02 |
| Gynaecological bowl capacity | 468*338*125mm |
| Table’s length | 74" (1850 mm) |
| Table’s length in chair position | 52.4" (1310 mm) |
| Table frame width | 24.4" (610 mm) |
| Height adjustment | 650mm-900mm (hydraulic pump) |
| Back rest inclination angle | 70° (gas spring) |
| Trendelenburg position | 20° (Ratchet system) |
| Reverse Trendelenburg position | 10° (Ratchet system) |
| Armrest swing out | 90° |
| Permissible load | 160kgs |
