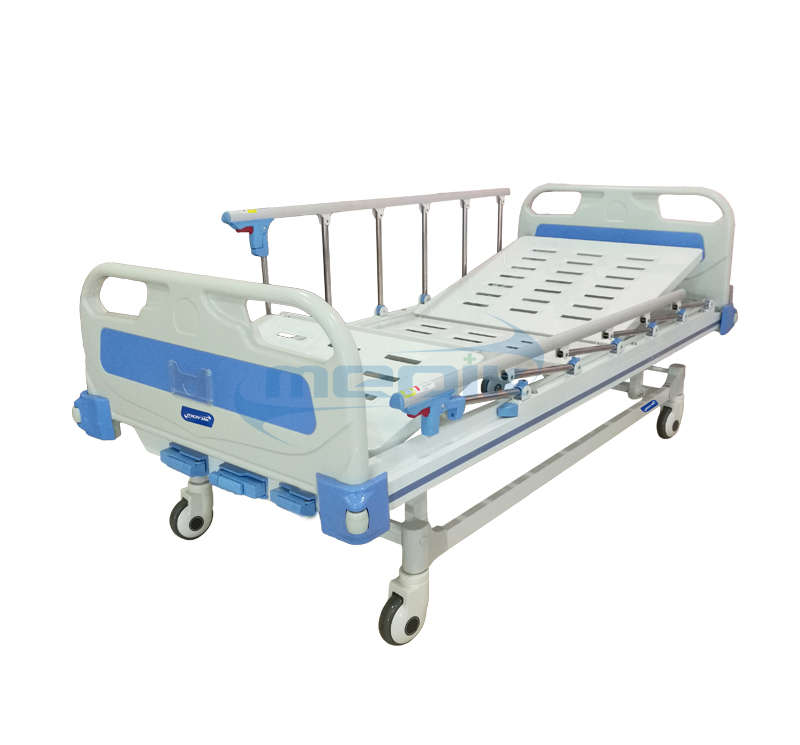

Model: YA-M3ACM
Overall Size: 2165*985*550mm
Safe Working Load: 185kg
Functions: Back section adjustable, Knee section adjustable
Features:
1. 3 movements manual operation
2. Collapsible aluninum railing with 6 bars
3. Foldable and conceable hand crank
4. Detachable head/foot board with easy lock
5. Caster diameter of 125mm with diagnoal locking
6. Bumper caster located on four corners
7. Inbulit over bed table(optional)
8. Central brake system(optional)
Technical features:
| Technical parameters | |
| Model | YA-M3ACM |
| Overall Size | 2150*980*500-750mm |
| Lying surface | 1900*830mm |
| Overall Height | 500-750mm |
| Back section adjustable | 0° to 75° |
| Knee section adjustable | 0° to 40° |
| Safe working load | 185kg |
| Specification | |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation hole, molded |
| Handrails | Collapsible aluninum railing with 6 bars |
| Head and Foot board | Detachable head/foot board with easy lock |
| Cranks | 3 peaces foldable crank |
| Castors | Caster diameter of 125mm with diagnoal locking |
| Bumper castors | Bumper castors on 4 corners of bed |
| Standard Accessories | |
| Head/Foot Board | 2 pieces |
| Side Rails | 2 pieces |
| Bed Frame | 1 set |
| Bed Boards | 4 pieces |
| Casters | 4 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
