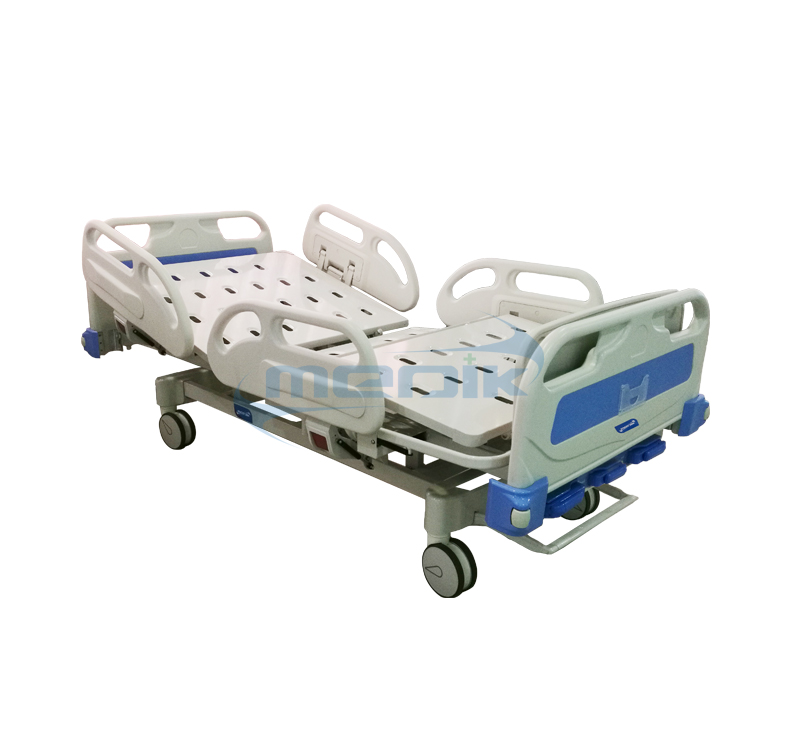

Model: YA-M3PCM02
Overall Size: 2150*1080*500-750mm
Safe Working Load: 205kg
Functions: Back section adjustable, Knee section adjustable,High-low
Features:
1. 3 movements manual operation
2. Four split side rail,drop down under the bed platform
3. Foldable and conceable hand crank
4. Detachable head/foot board with easy lock
5. Central brake system with wheel diameter of 125mm
6. Bumper caster located on four corners
7. Inbuilt over bed table(optional)
Technical features:
| Technical parameters | |
| Model | YA-M3PCM02 |
| Overall Size | 2150*1080*500-750mm |
| Lying surface | 1860*900mm |
| High-low | 500-750mm |
| Back section adjustable | 0° to 75° |
| Knee section adjustable | 0° to 40° |
| Safe working load | 205kg |
| Specification | |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation hole, molded |
| Handrails | Four split side rail,drop down under the bed platform |
| Head and Foot board | Detachable head/foot board with easy lock |
| Over bed table | Inbuilt over bed table |
| Cranks | 3 peaces foldable crank |
| Castors | Caster diameter of 125mm with diagnoal locking |
| Bumper castors | Bumper castors on 4 corners of bed |
| Standard Accessories | |
| Head/Foot Board | 2 pieces |
| Side Rails | 4 pieces |
| Bed Frame | 1 set |
| Bed Boards | 4 pieces |
| Casters | 4 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
