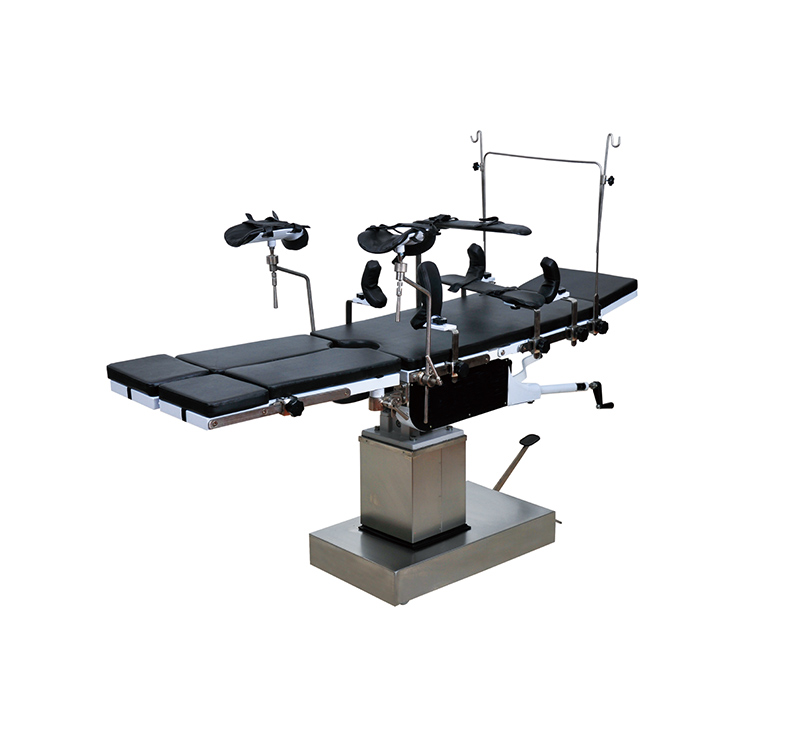

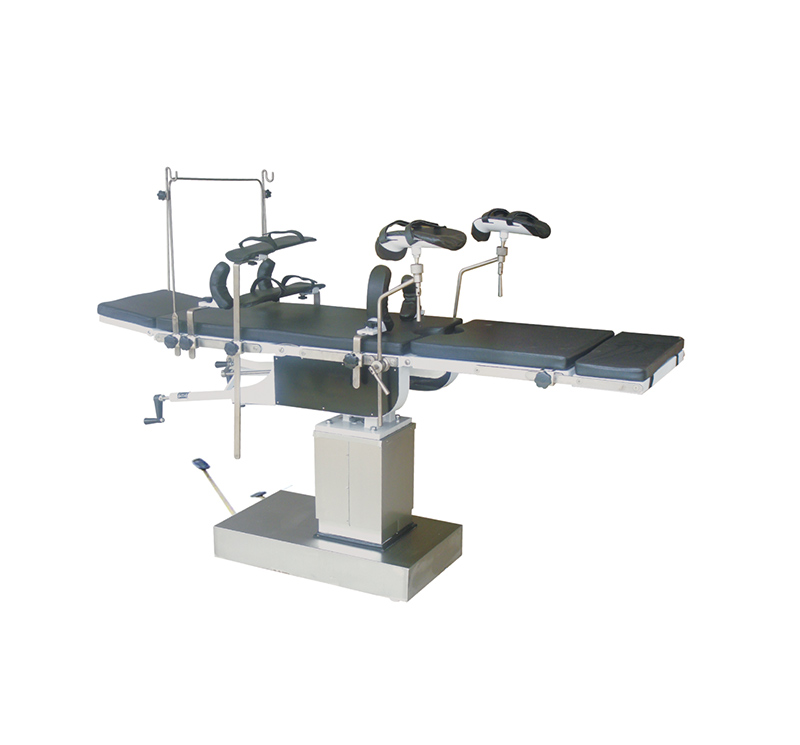

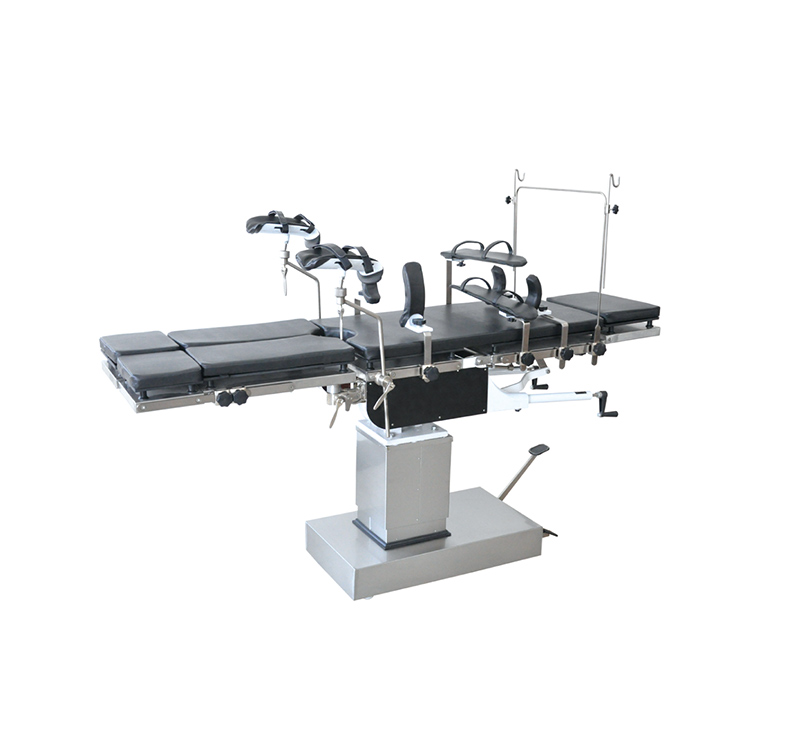

YA-02M Hydraulic Surgical Table

share

YA-02M Hydraulic Surgical table


Product Details

Watch Video


YA-02M Hydraulic Surgical table

Features:

The YA-02M is designed for procedures in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery, urology, proctology, gynaecology and others.
Four (Five) section table top with five (six) segments

Operating table surfaces are easy to clean and resistant to disinfecting agents

Table top height adjustment with use of hydraulic foot pump

Back rest segment angle inclination, leg rest segment (regarding five and six segments table top), head rest segment functions are supported by gas springs

Kidney elevator (in case of five and six segment table top adjusted manually with use of crank placed at patient's head side)

Lateral tilts, Trendelenburg and Reverse Trendelenburg functions are executed with the rods placed at patient's head side

Divided, two parts leg rest segments are adjusted by means of gear transmission

Double layer top surface for placement of X-ray holder tray

Specifications:

Table Length81.6" (2040 mm)
Table Width20" (500 mm) (22.5" with extenders)
Table Height Range29.5" to 37" (740 to 940 mm)
Patient Weight Capacity396 lbs (180 kg) patient support, including raise/lower (centered on the column)
506 lbs (230 kg) total support, including the accessories of surgical table
Table Shipping Weight616 lbs. (280 kg)
Trendelenburg / Reverse25°/ 30°
Lateral Tilt (left/right)20° / 20°
Head Section+30° to -90°
Back Section+80° to -10°
Leg Section0 to -90°
Spread Angle of leg plates90°
Kidney Elevator height adjustment4.7” (120mm)
