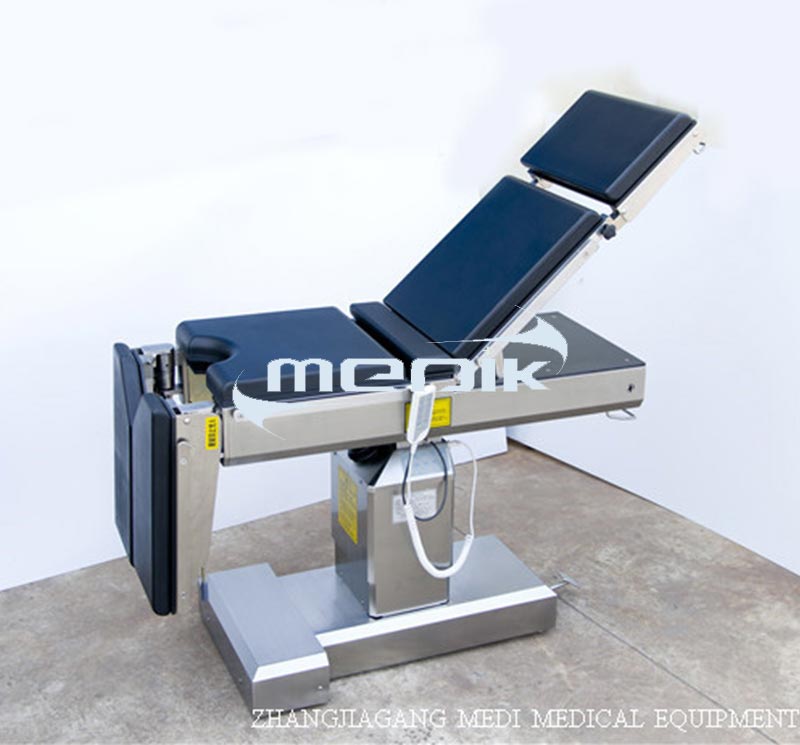

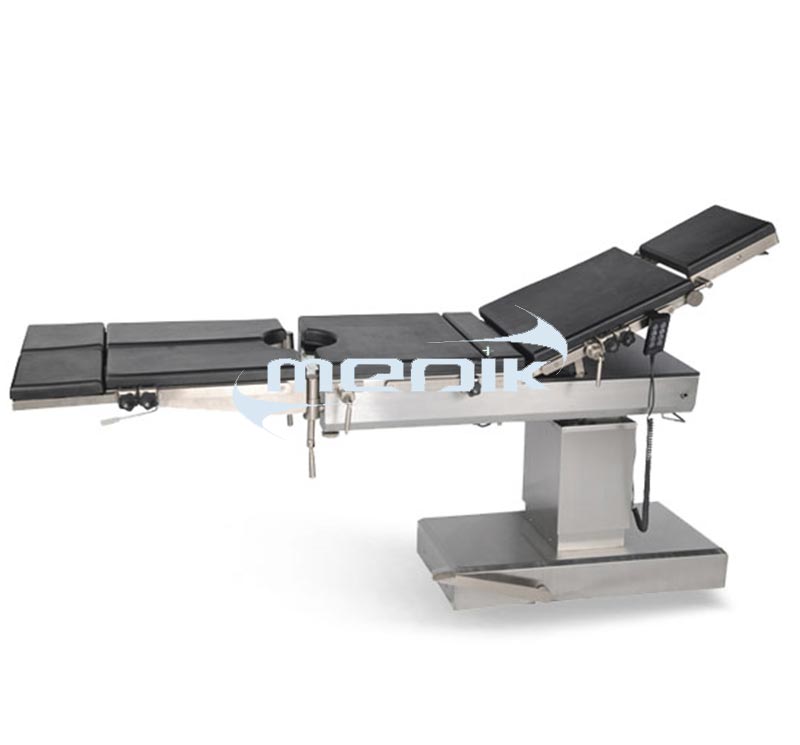

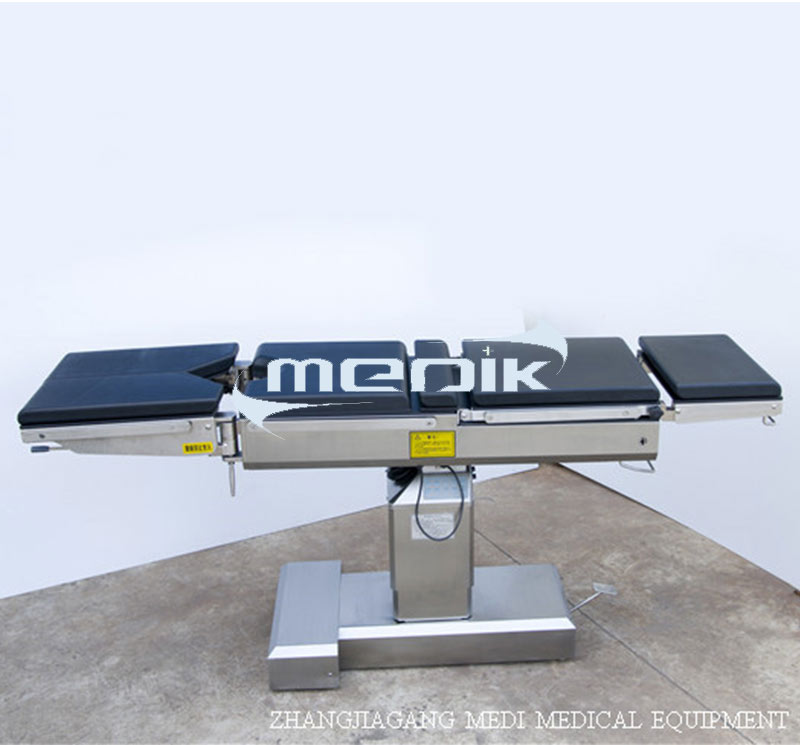

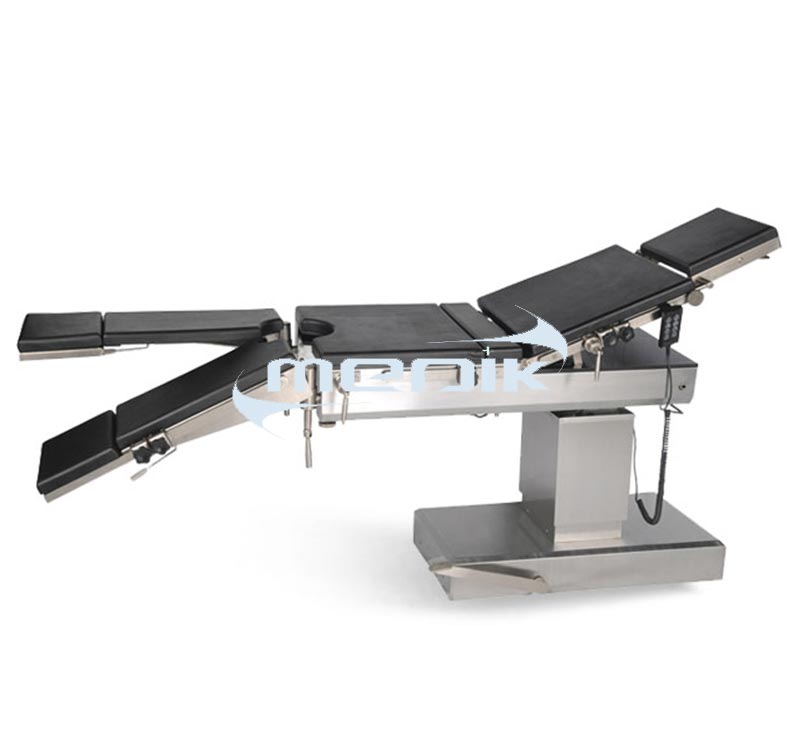

YA-04E Universal Operating Table

Share:

Model:YA-04E

Size: 2150*500*750-1000mm

Application: For various surgical operations(neck, limbs etc.) also orthopedic operations with traction frame

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Watch Video


Main features

- The YA-04E can be easily converted to various specialty tables by adding accessory packages, perfect for Urology, Orthopedics Surgery, and Pain Management.

- Contours to virtually all patient postures with a five-section tabletop.

- Accommodates virtually all patients with generous height ranges.

- Provides a longitudinal slide of 15.8” for C-arm, permitting high quality images crucial to cardiothoracic, neurosurgical and orthopedic procedures.

- Wire controller for different movements and Column control panel with locking function for movements.

- The back rest segment, head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs.

- Divided, two parts leg rest segments are adjusted by means of gear transmission.

- The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents.

Technical parameter

ModelYA-04E
Overall size2150*500*750-1000mm
HI-LOW750-1000mm
Head board fold upward and fold downward≥30°/≥90°
Back board fold upward ≥45°
Leg board fold downward and fold outward≥90°/≥90°

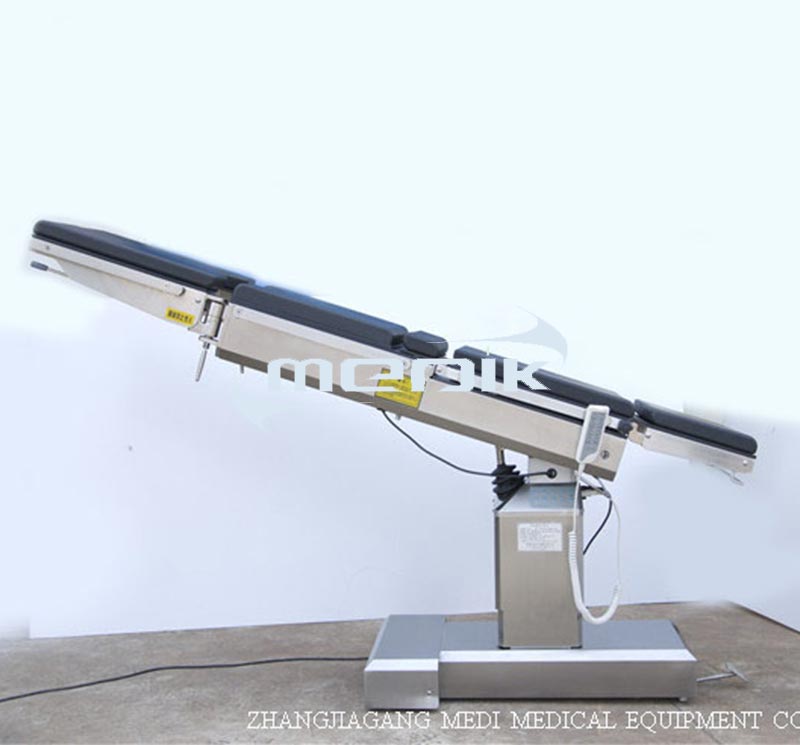

Trendelenburg and Reverse-Trendelenburg≥25°
Left and right tilting angle≥20°
Waist board lifting≥110mm
Loading capacity180kgs
Packing140*76*95cm=1.01M3   G.W.: 350kgs
Horizontal and longitudinal movement≥400 mm
PowerAC220V 50HZ/110V 60HZ Input power: 150VA

Standard accessory

1 pair armrests

1 pair waist grab handle

1 pair shoulder supporter

1 pair leg holders

1pc anesthesia screen

1 pair footrests

1 pc Hand controller
